Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 5 aperture options F4 F5.6 F7 F8 F11
▶ Maximum image size 1/2.7"
▶ 3MP high resolution, high picture clarity and consistency
▶ C-mount connect available with a adapter
▶ Small size and light weight, convenient for miniaturization and integration of equipment

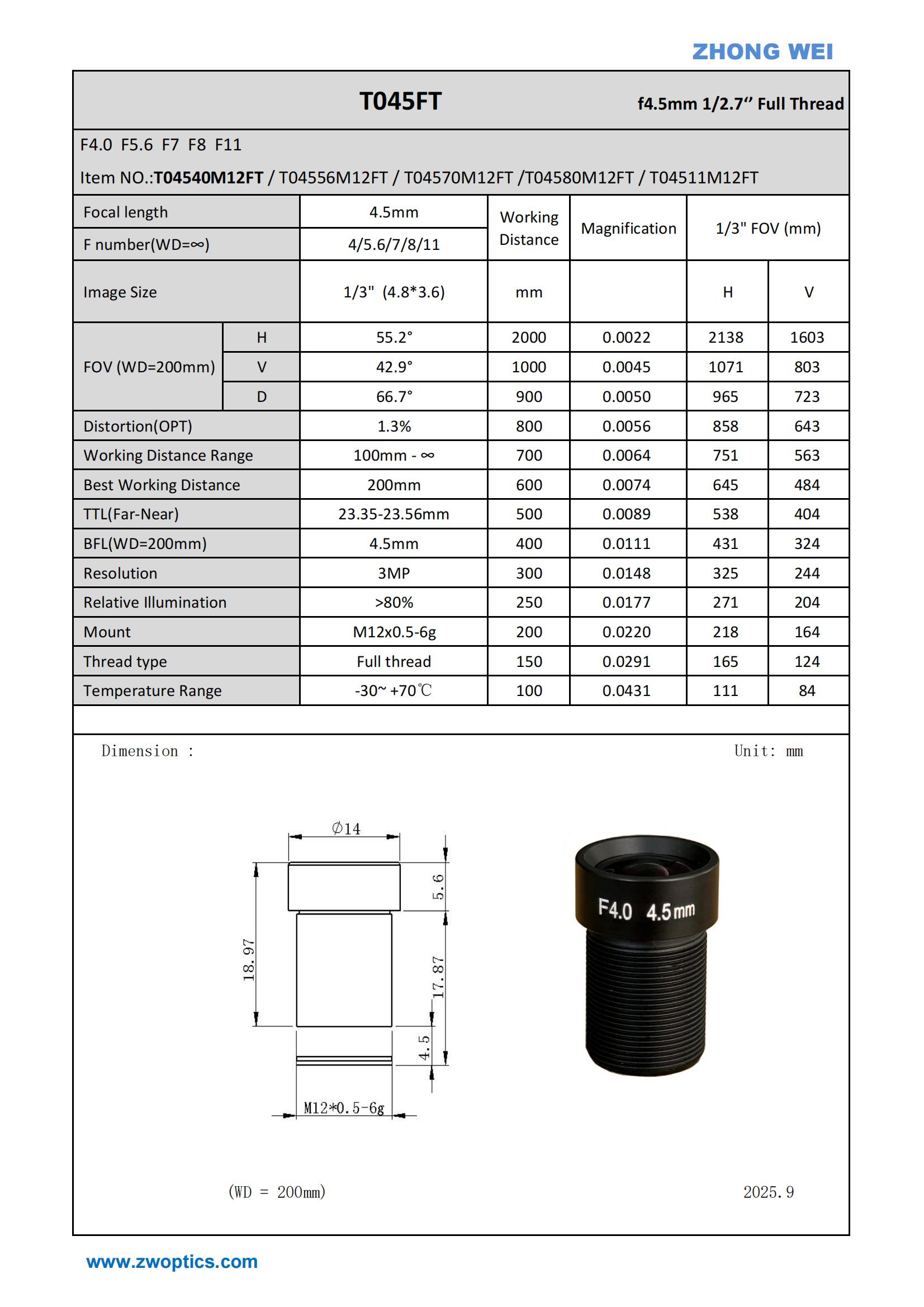

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|

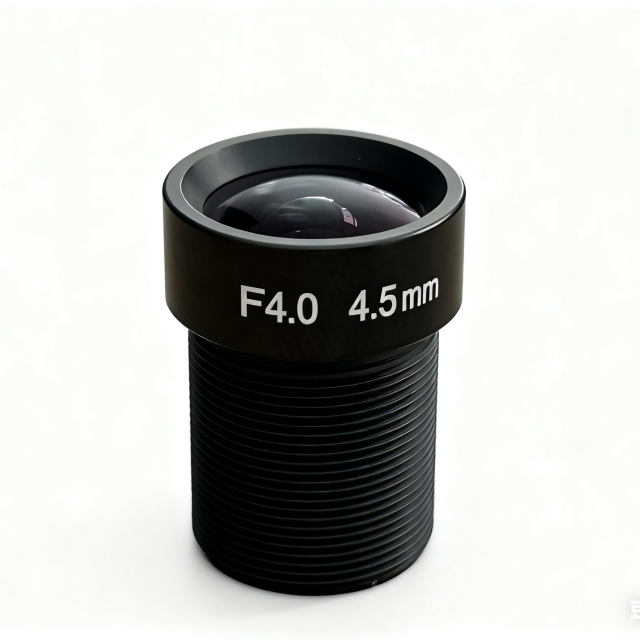

| T04540M12FT | 4.5 | 4 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |

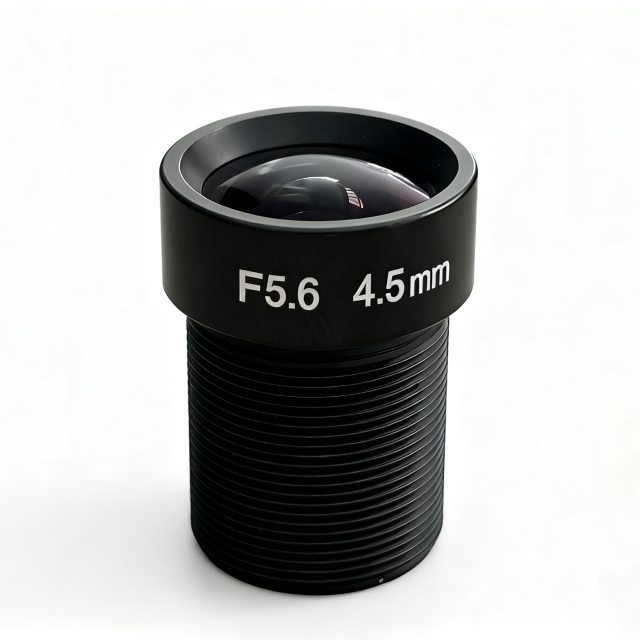

| T04556M12FT | 4.5 | 5.6 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |

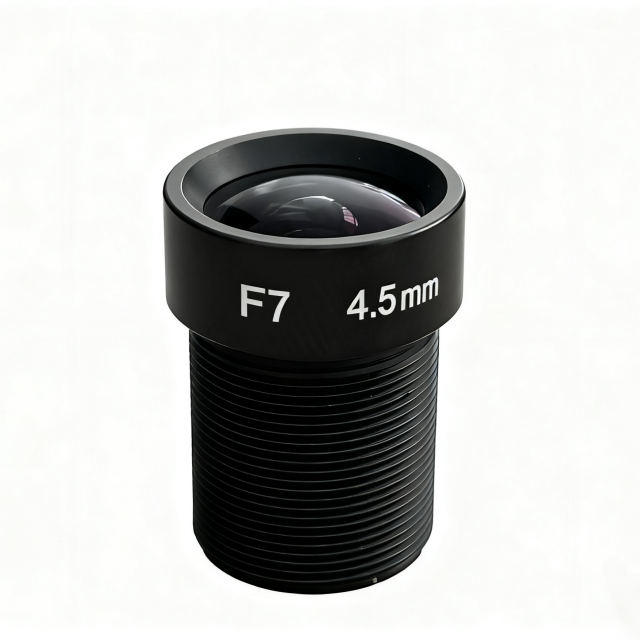

| T04570M12FT | 4.5 | 7 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |

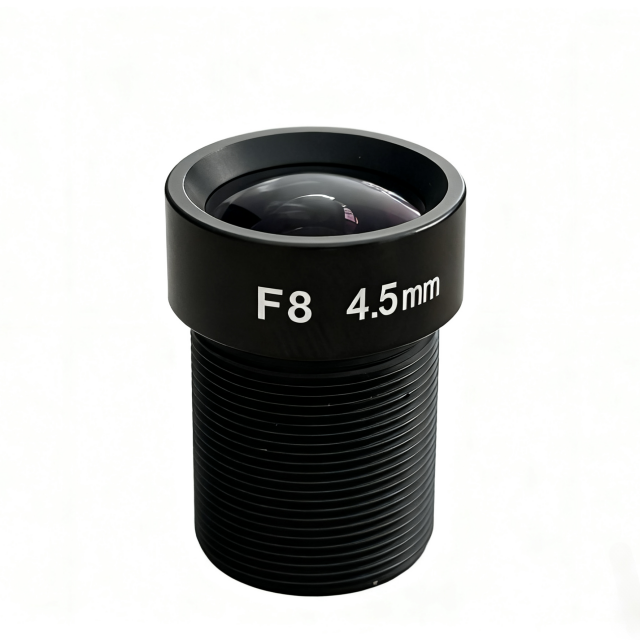

| T04580M12FT | 4.5 | 8 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |

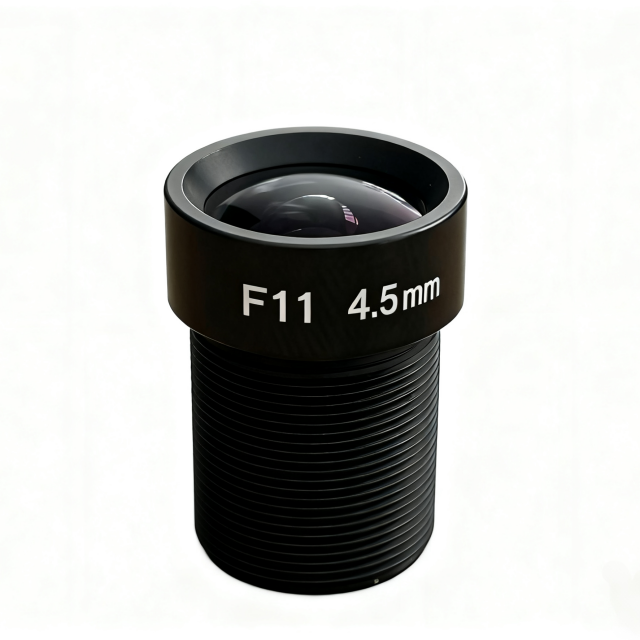

| T04511M12FT | 4.5 | 11 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |
| T04540M12FT-VIS | 4.5 | 4 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T04556M12FT-VIS | 4.5 | 5.6 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T04570M12FT-VIS | 4.5 | 7 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T04580M12FT-VIS | 4.5 | 8 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T04511M12FT-VIS | 4.5 | 11 | 1/2.7'' | 1.3% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
