Autofocus lens

HOME >> Product >> Autofocus lens

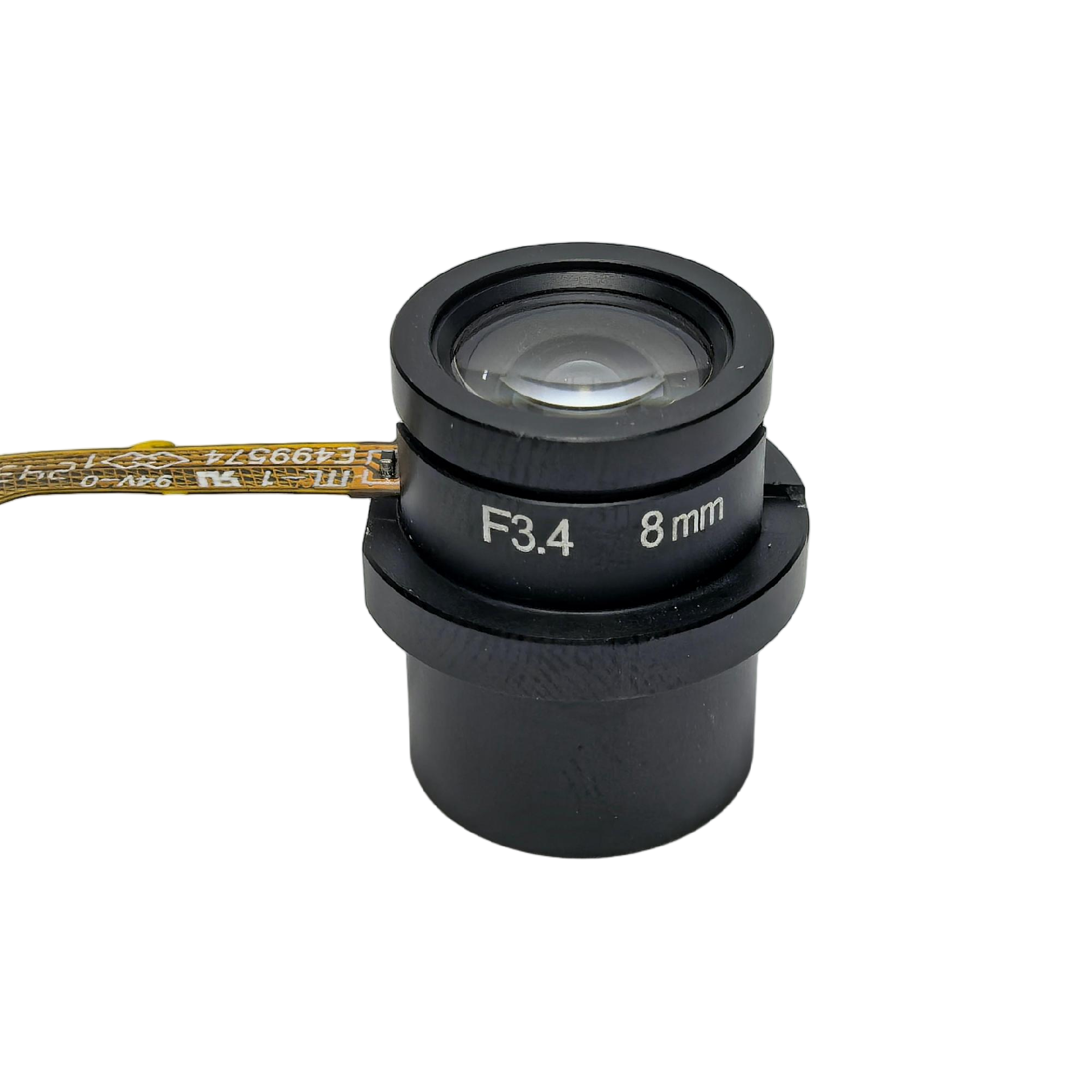

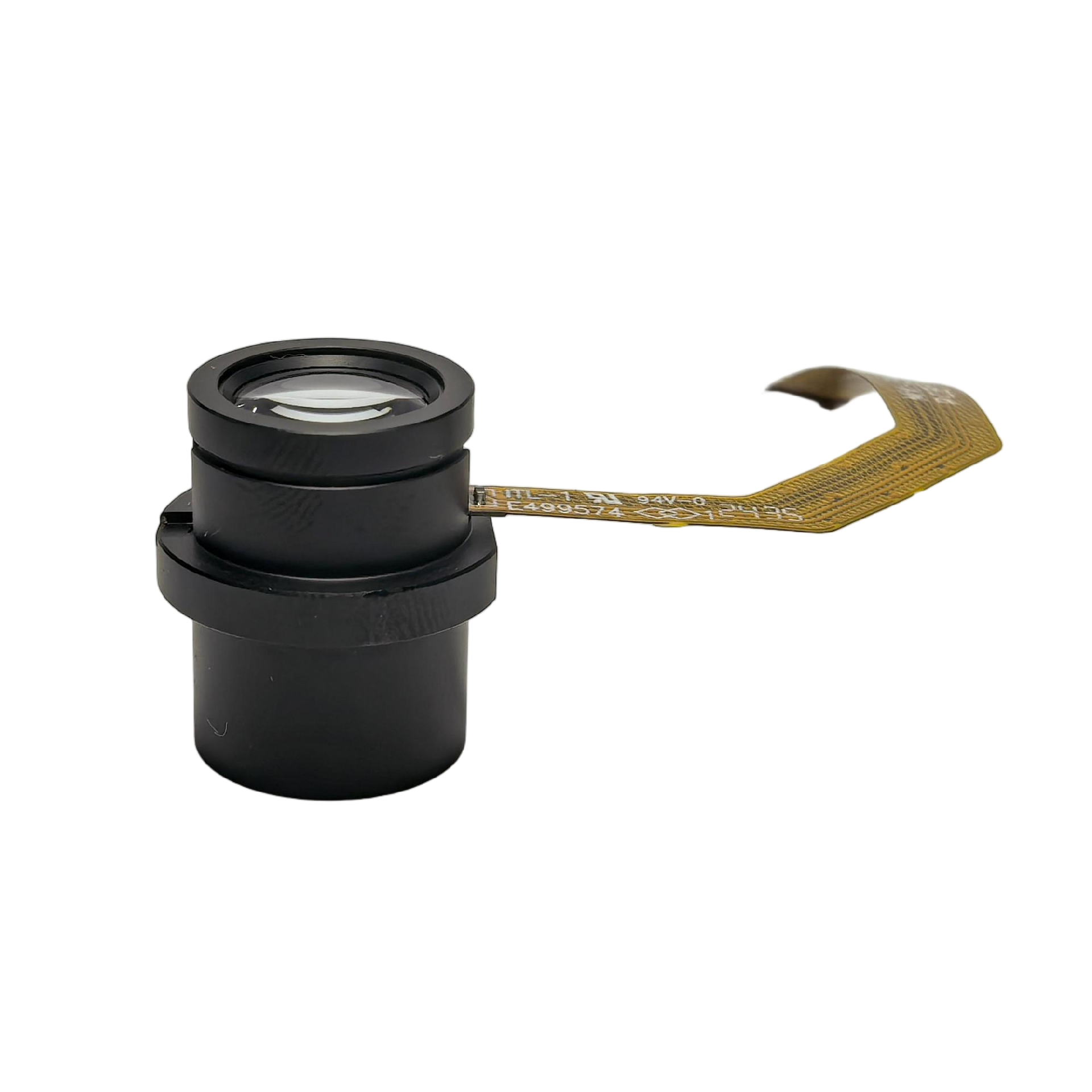

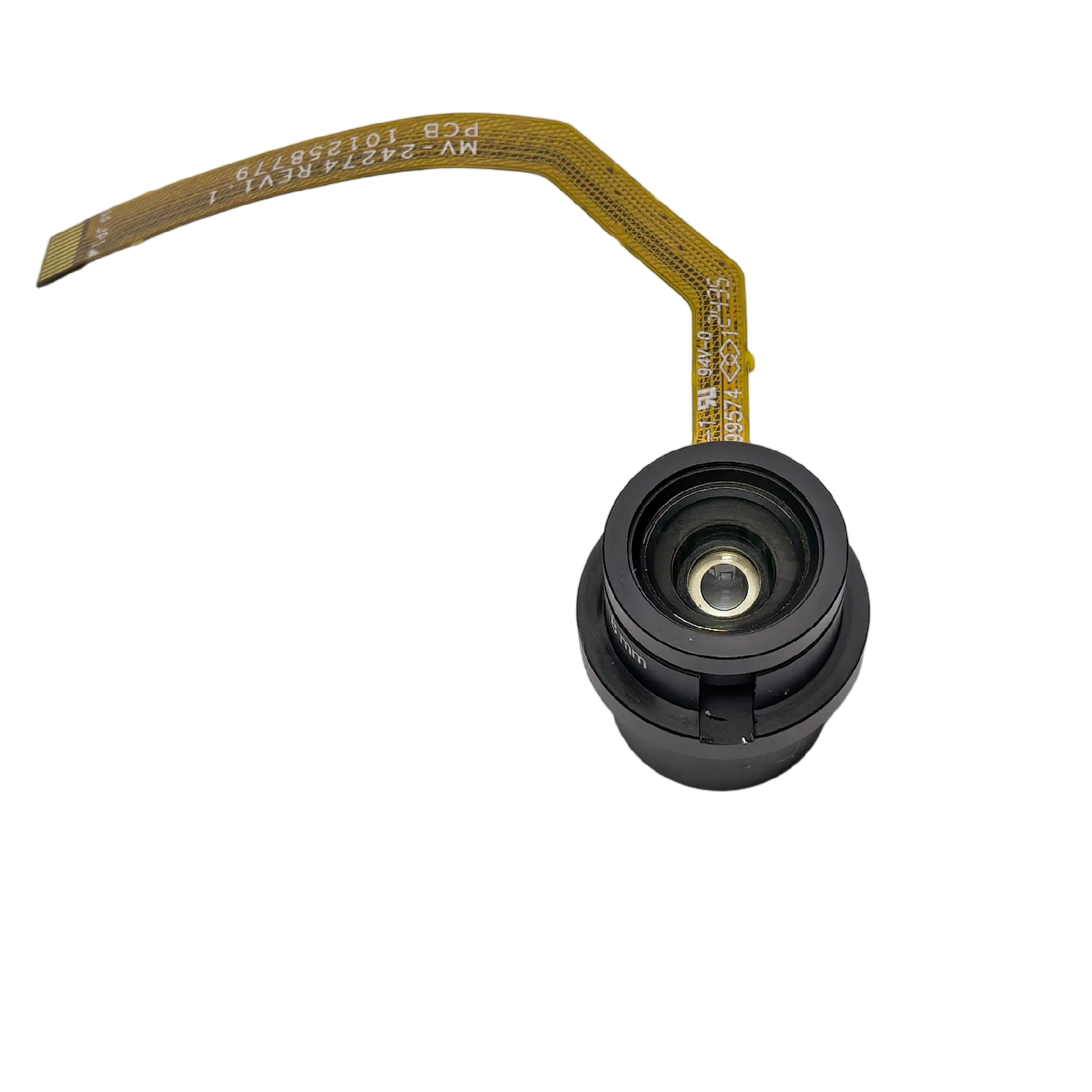

M0834AF liquid lens 8.1mm 2/3” F3.4

  • Product Display
  • PRODUCT FEATURES
  • Product Specifications

    • Product Display

    Auto-focusing lens are applied to high -speed applications or precision applications that require rapid refocusing .

    Zhongwei products Including autofocus lens with liquid lens/Tlens






    PRODUCT FEATURES

    ▶ Electrostatic drive, rapid response


    ▶ Minimal liquid friction loss, longer life


    ▶ Large adjustment range of focal power


    ▶Supports ultra-short working distance







    Product Specifications

    OVERVIEW


    Series                                 :      Autofocus LensModel Number                       :      M0834AF
    Special Type of Lens   :     Liquid LensLiquid Lens Model                :      Corning
    Focal Length (FL)         :      8.1mmAperture (F/#)                         :      F3.4
    Sensor Size                     :      2/3''FOV (H*V*D)                             :     56.1°  * 47.8°   *69.8°
    Resolution                      :      6MPWorking Distance Range   ：   60mm-2m

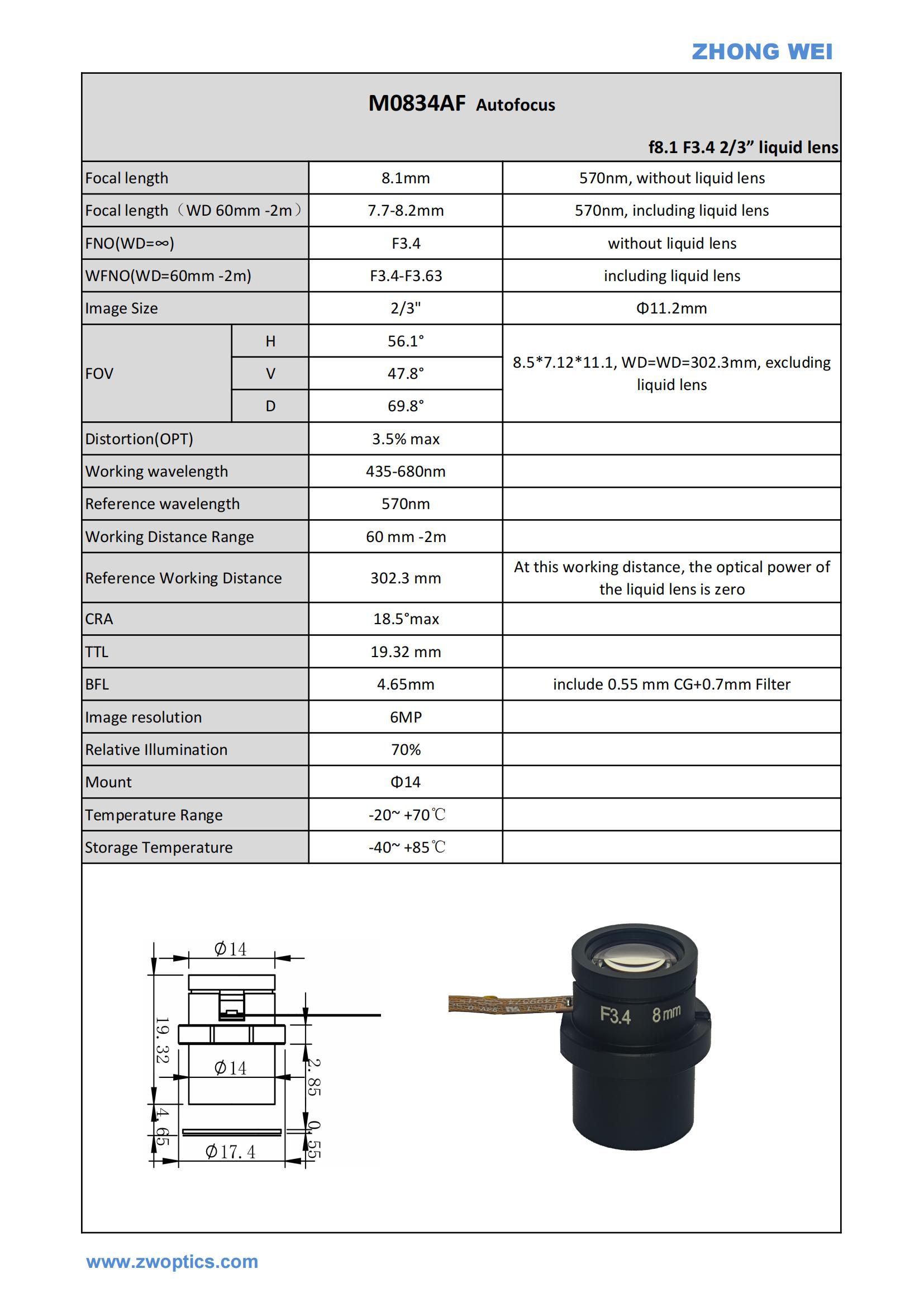

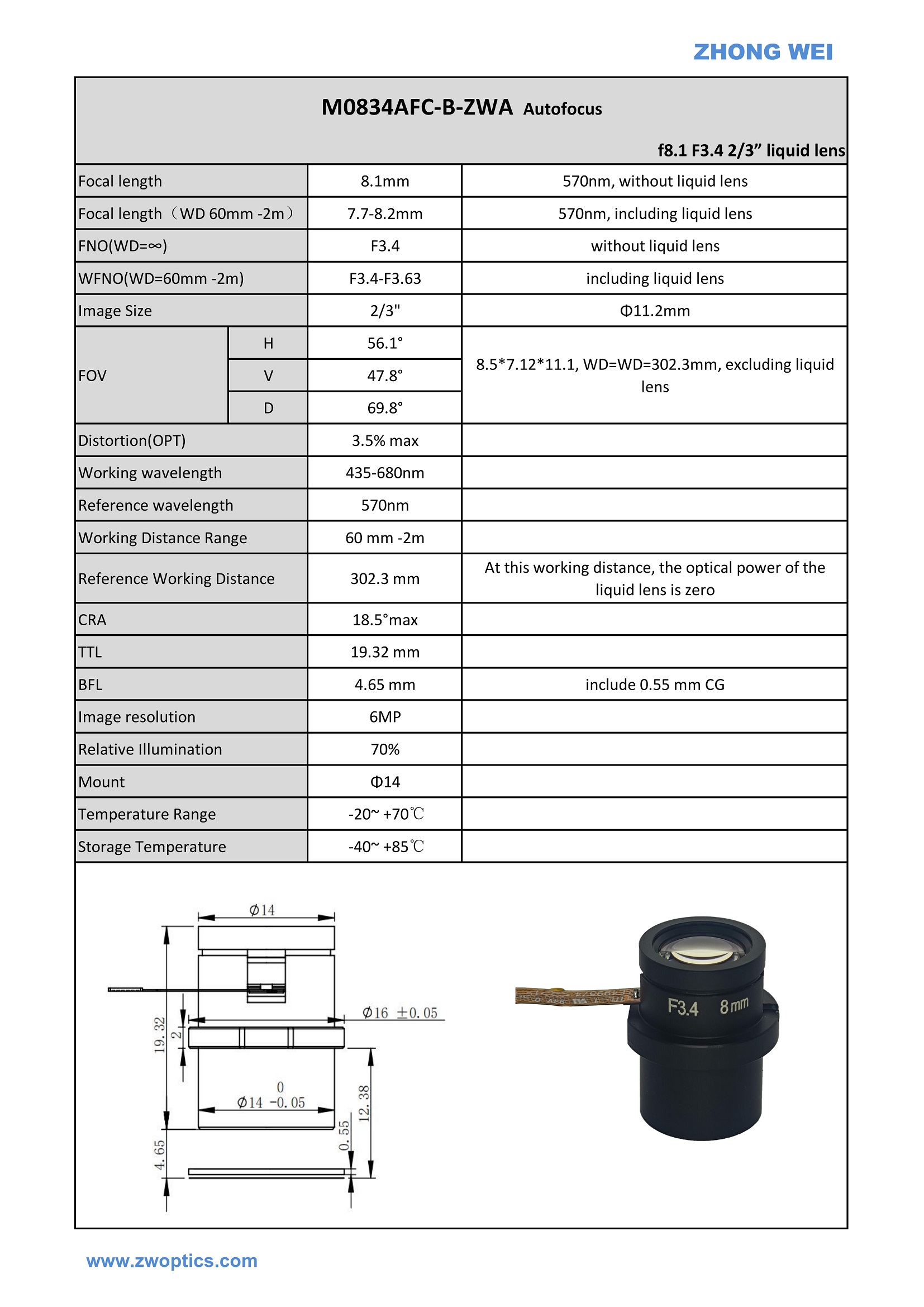

    DATA SHEET



    M0834AF datasheet_00.jpg
