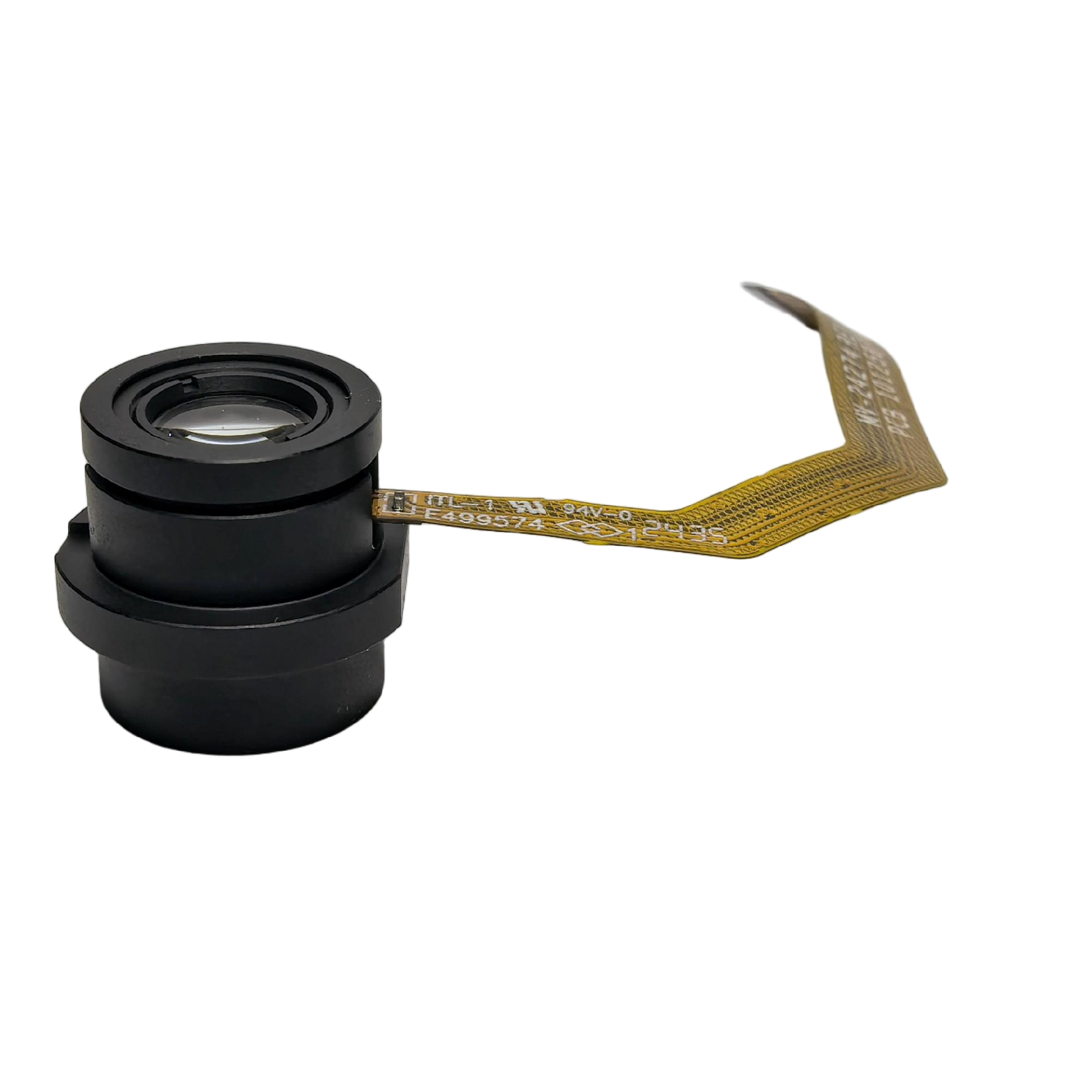

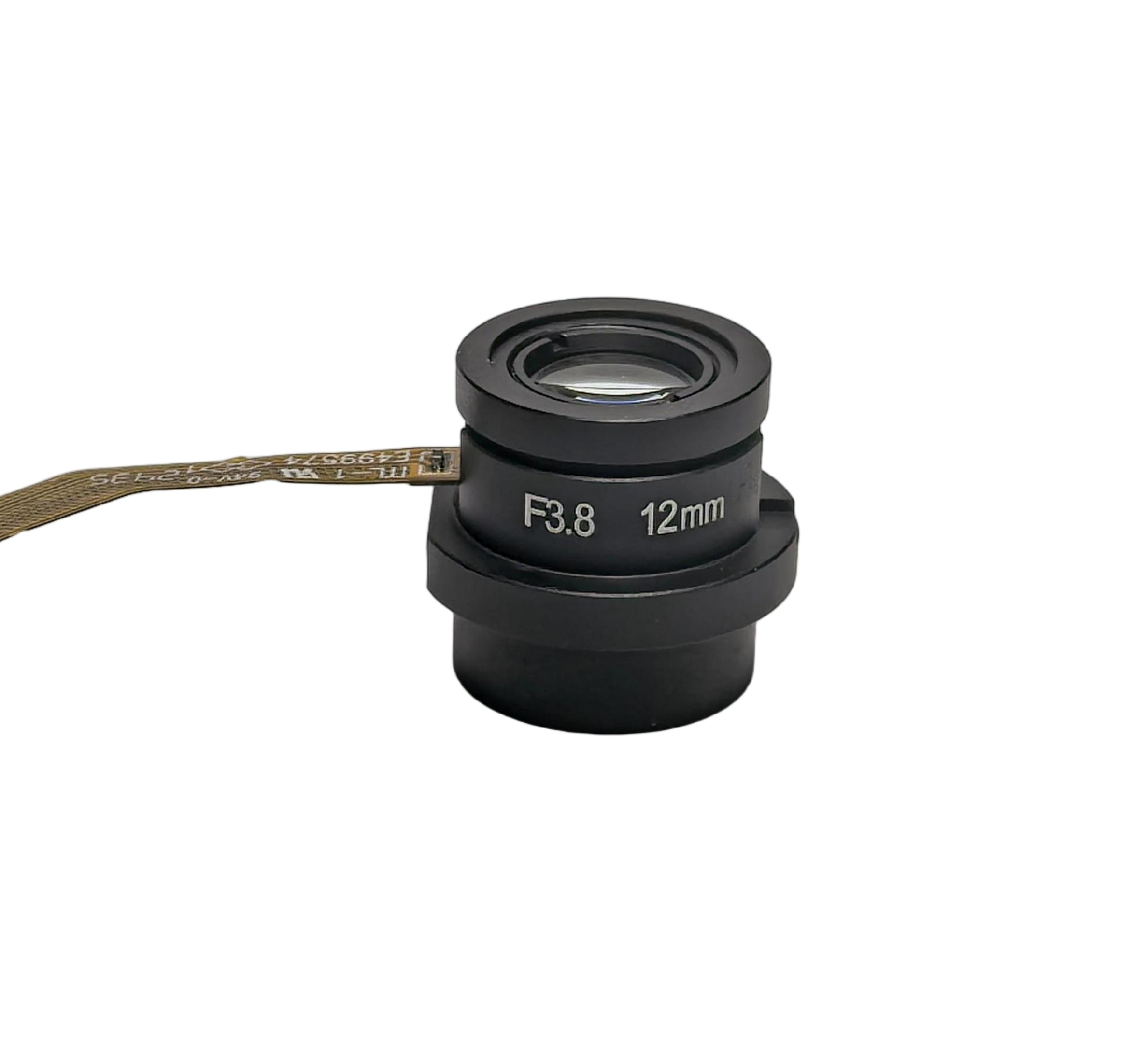

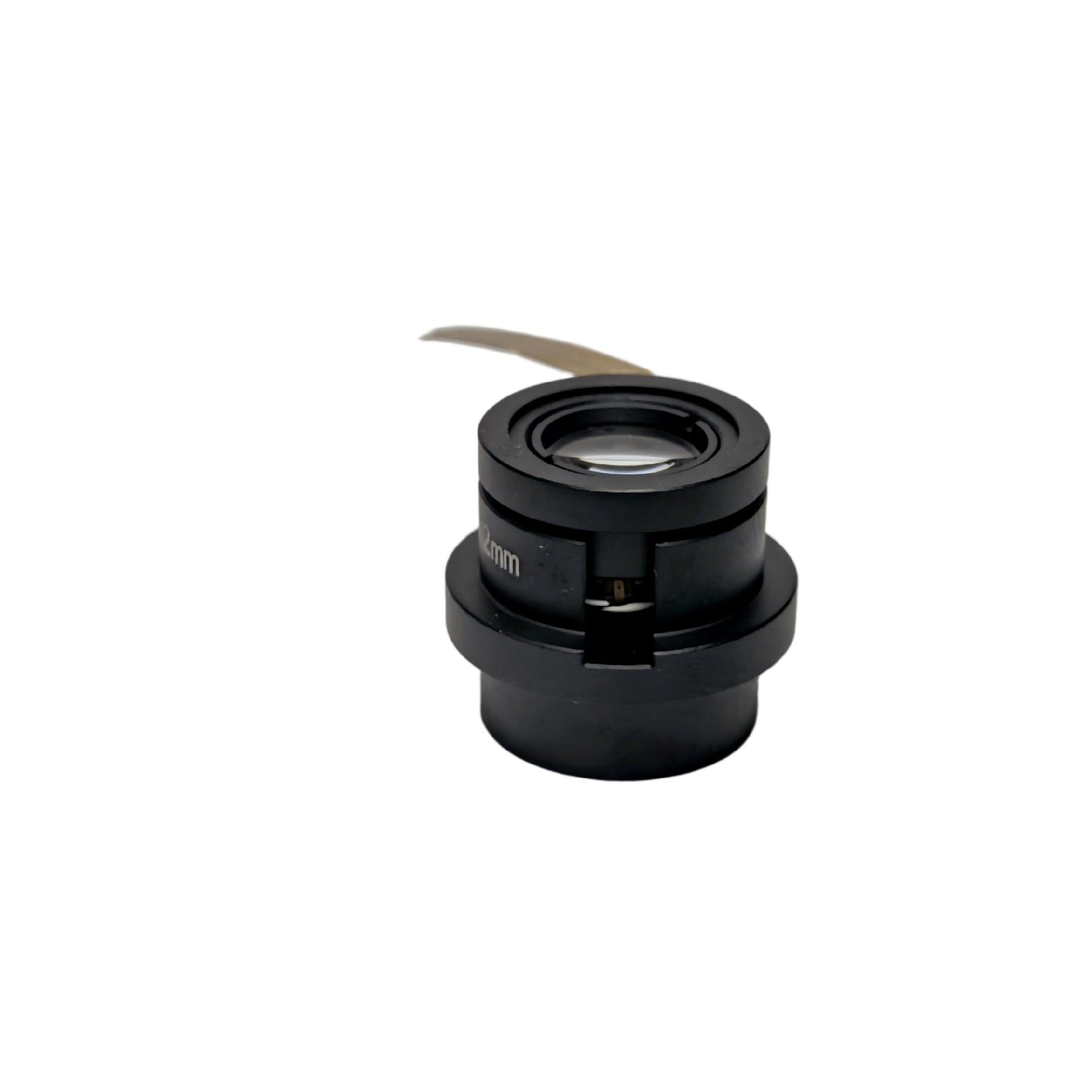

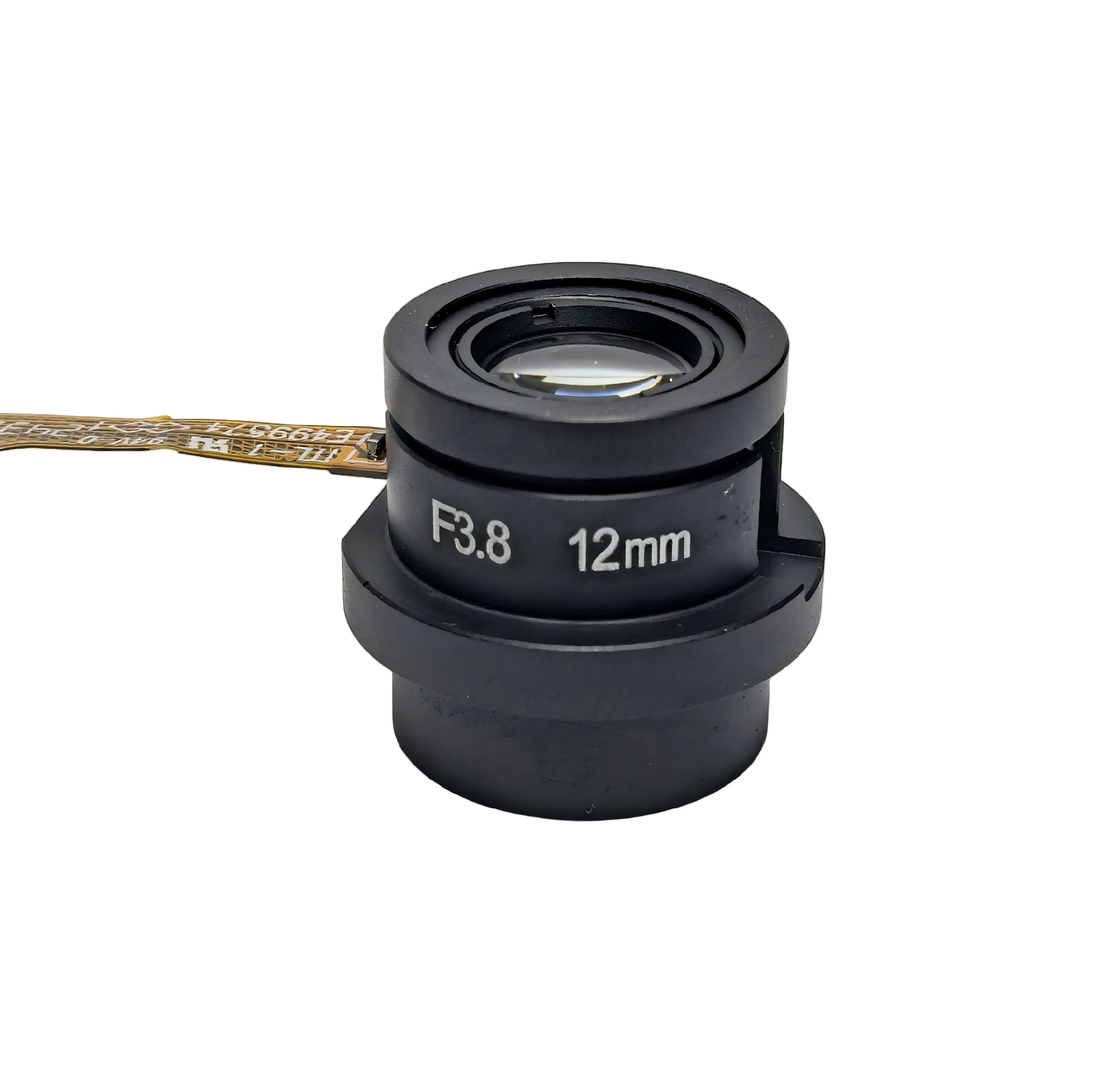

M1238AF liquid lens 12mm 2/3” F3.8-Autofocus lens-Hangzhou Zhongwei Optics Co., Ltd.,

Product Display

PRODUCT FEATURES

Product Specifications

Auto-focus lenses are applied to high -speed applications or precision applications that require rapid refocusing .

Zhongwei products Including autofocus lens with liquid lens/Tlens

▶ Electrostatic drive, rapid response

▶ Minimal liquid friction loss, longer life

▶ Large adjustment range of focal power

▶Supports ultra-short working distance

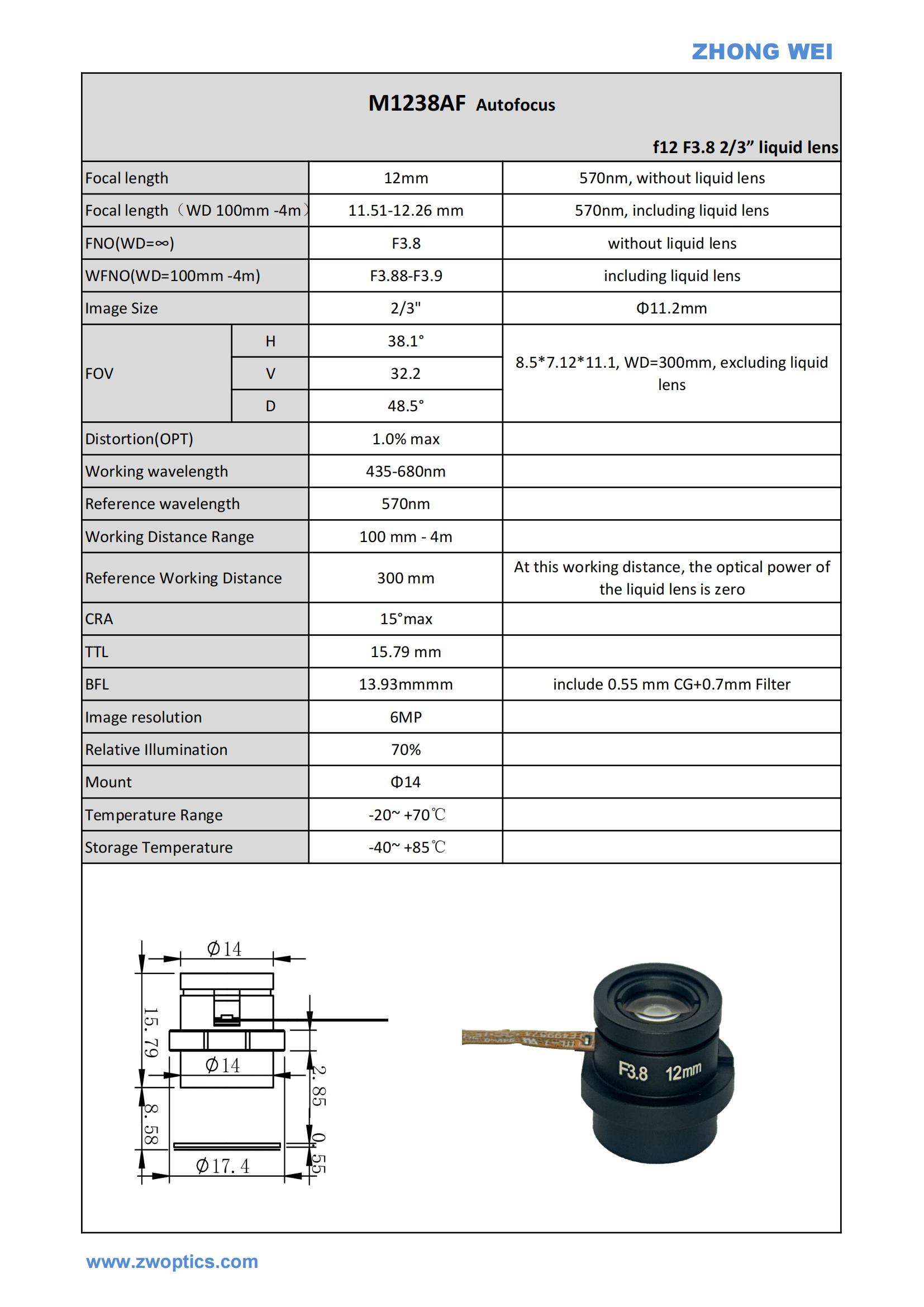

OVERVIEW

Series : Autofocus Lens	Model Number : M1238AF
Special Type of Lens : Liquid Lens	Liquid Lens Model : Corning
Focal Length (FL) : 12mm	Aperture (F/#) : F3.8
Sensor Size : 2/3''	FOV (HVD) : 38.1° * 32.2° *48.5°
Resolution : 6MP	Working Distance Range ： 100mm-4m
