Autofocus lens

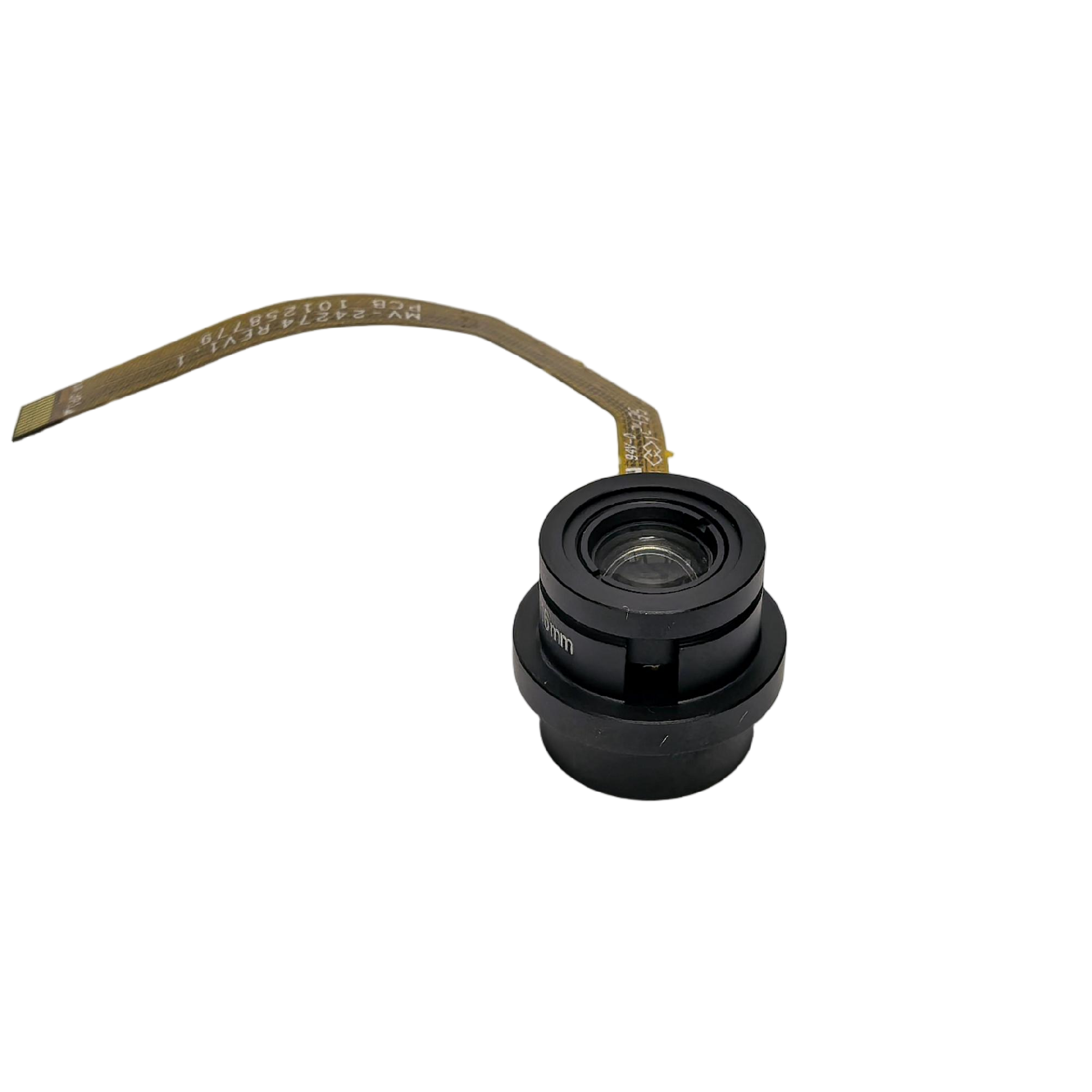

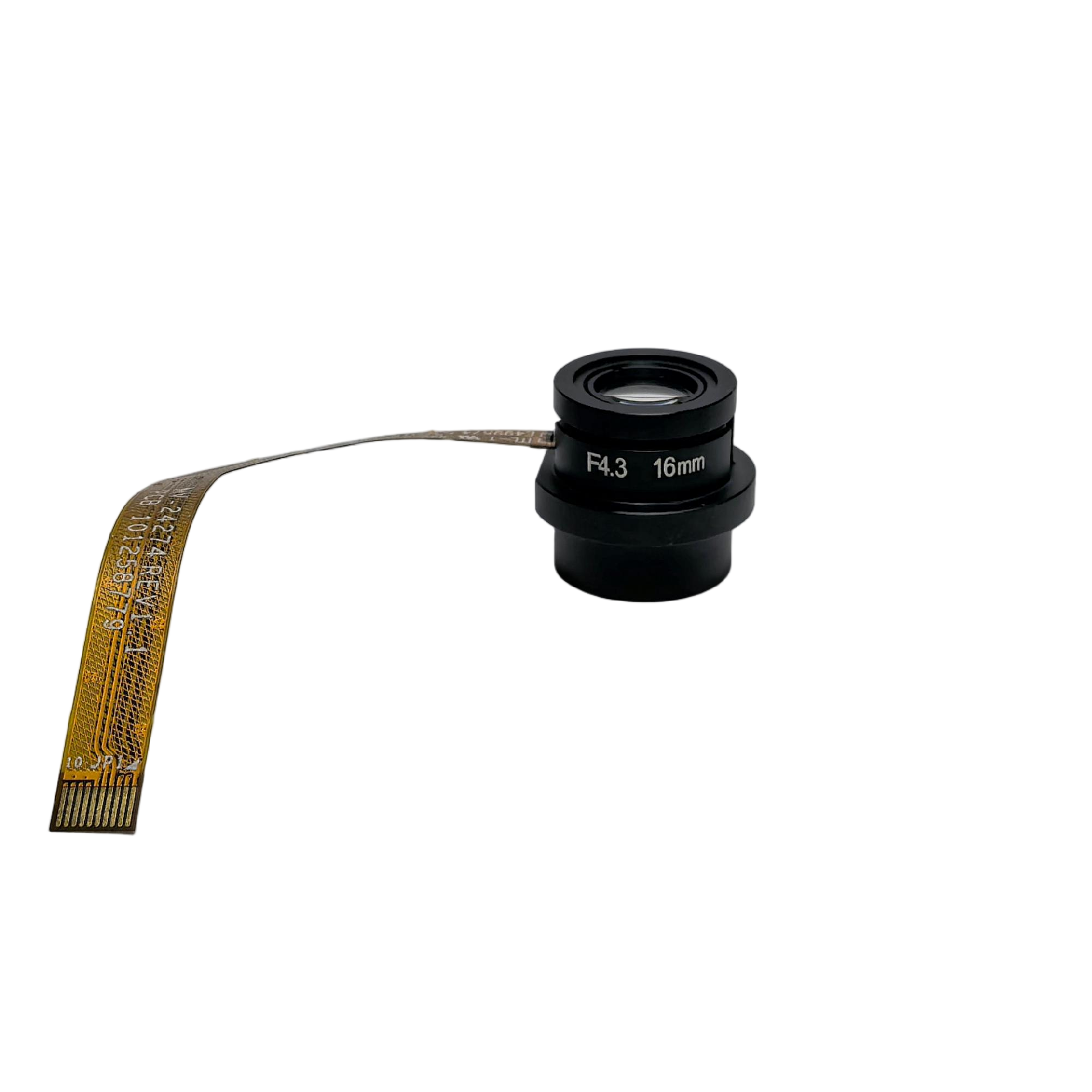

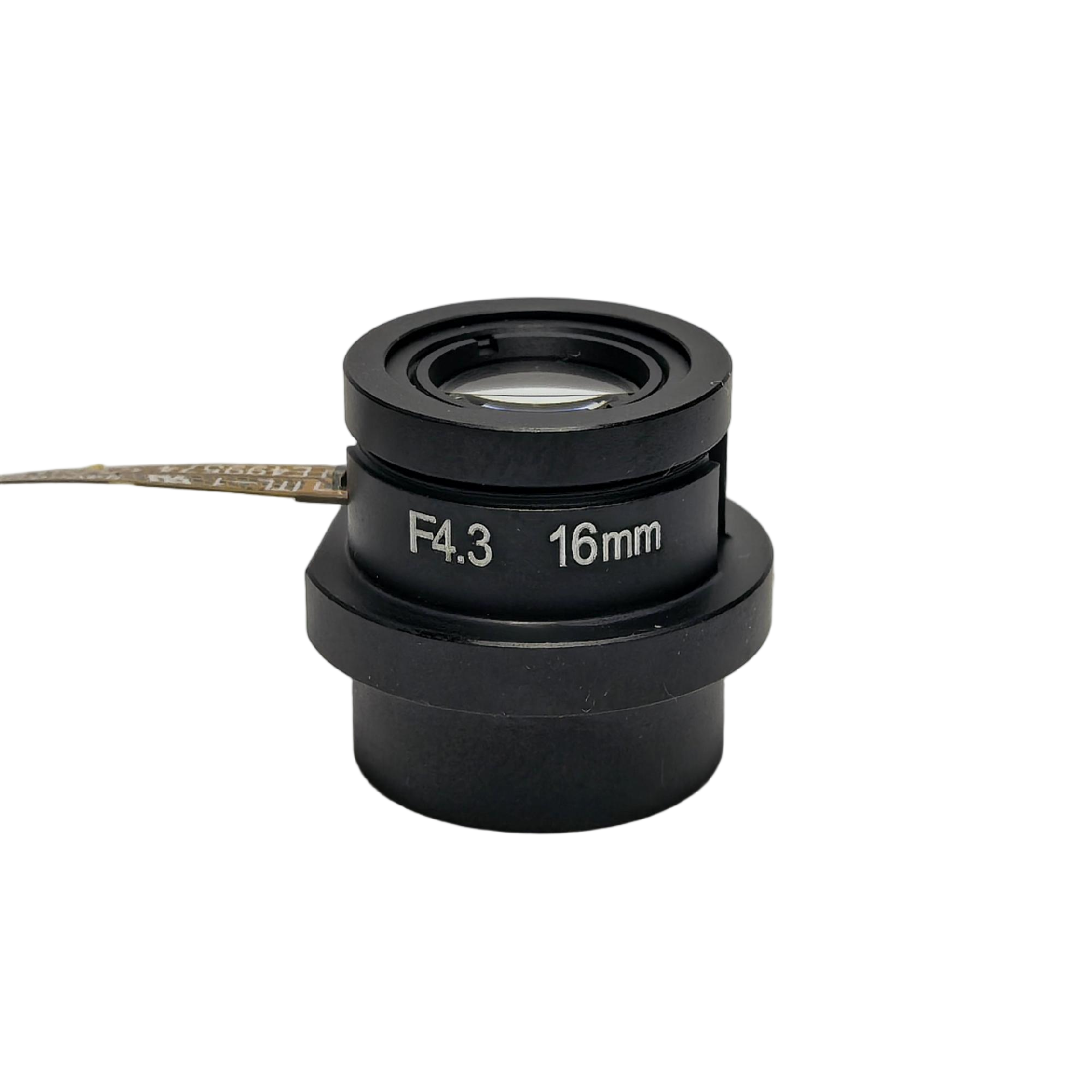

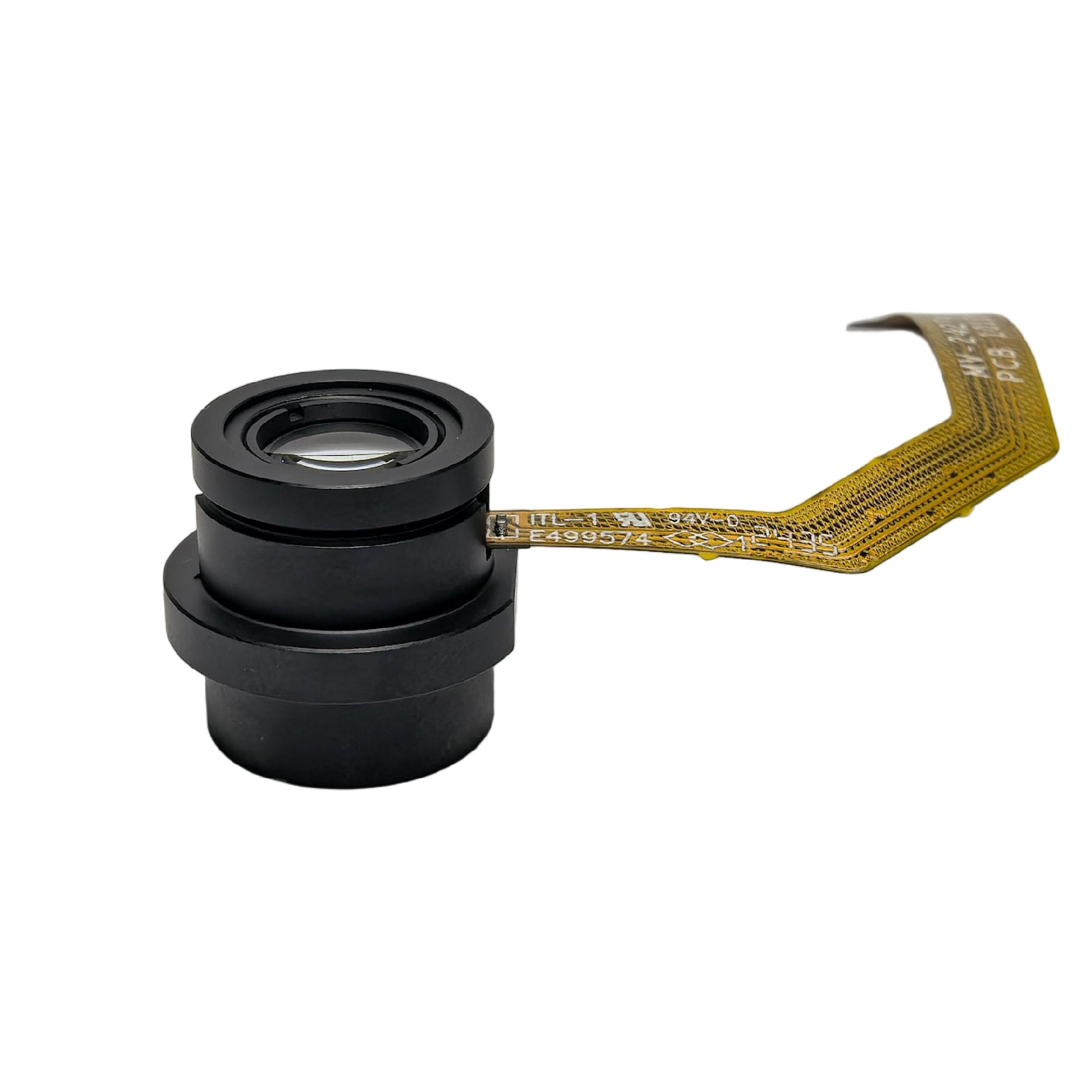

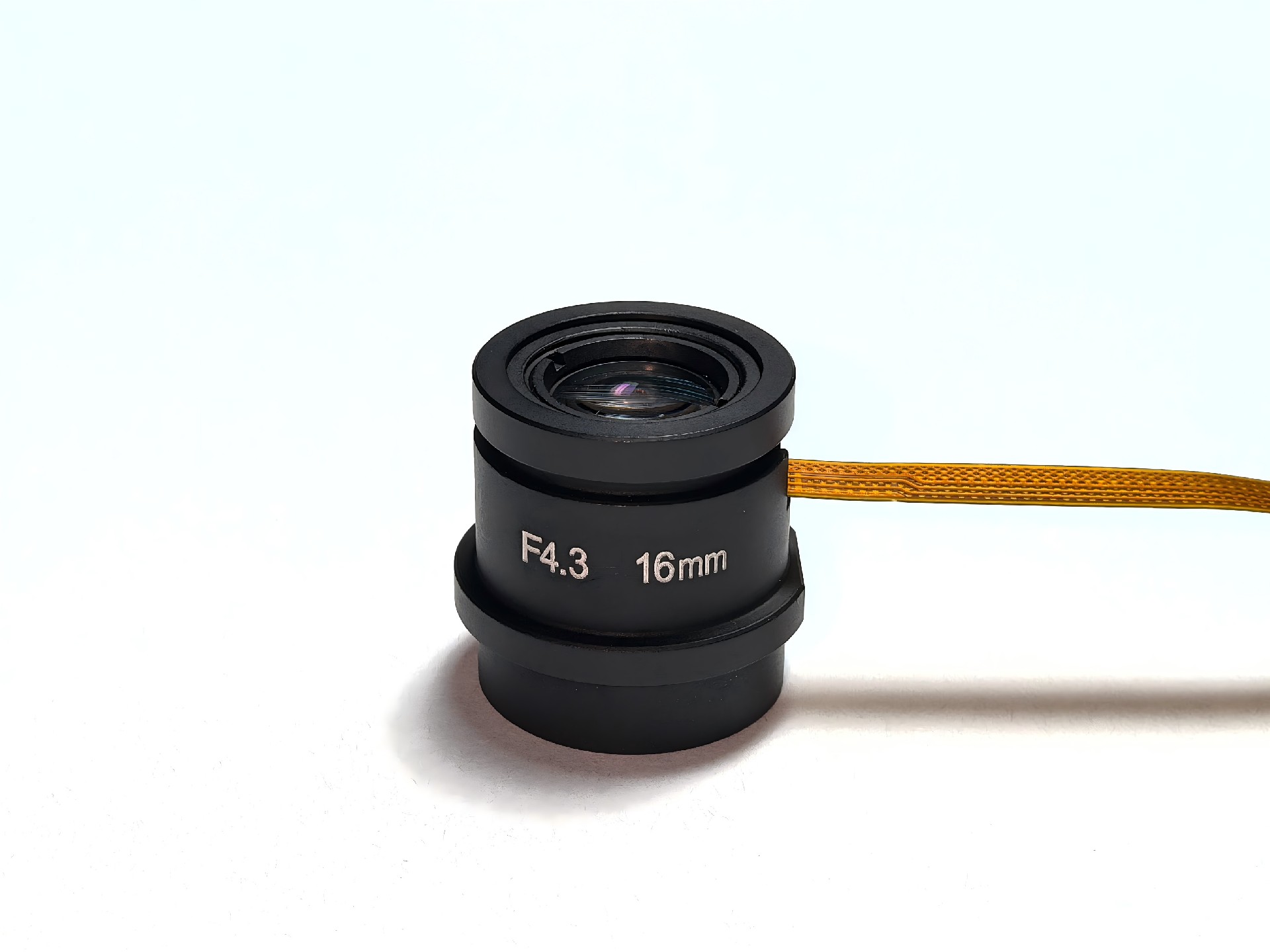

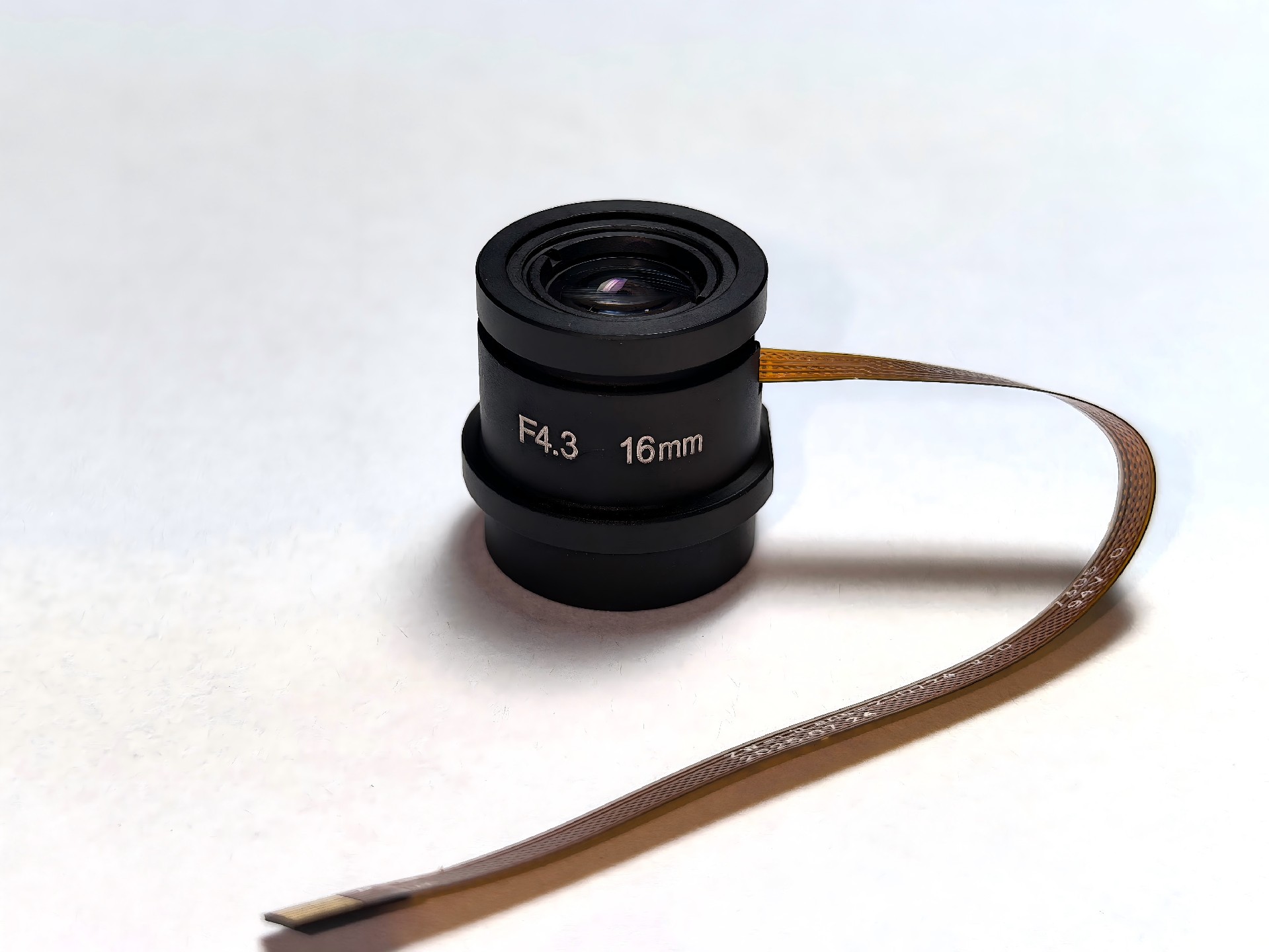

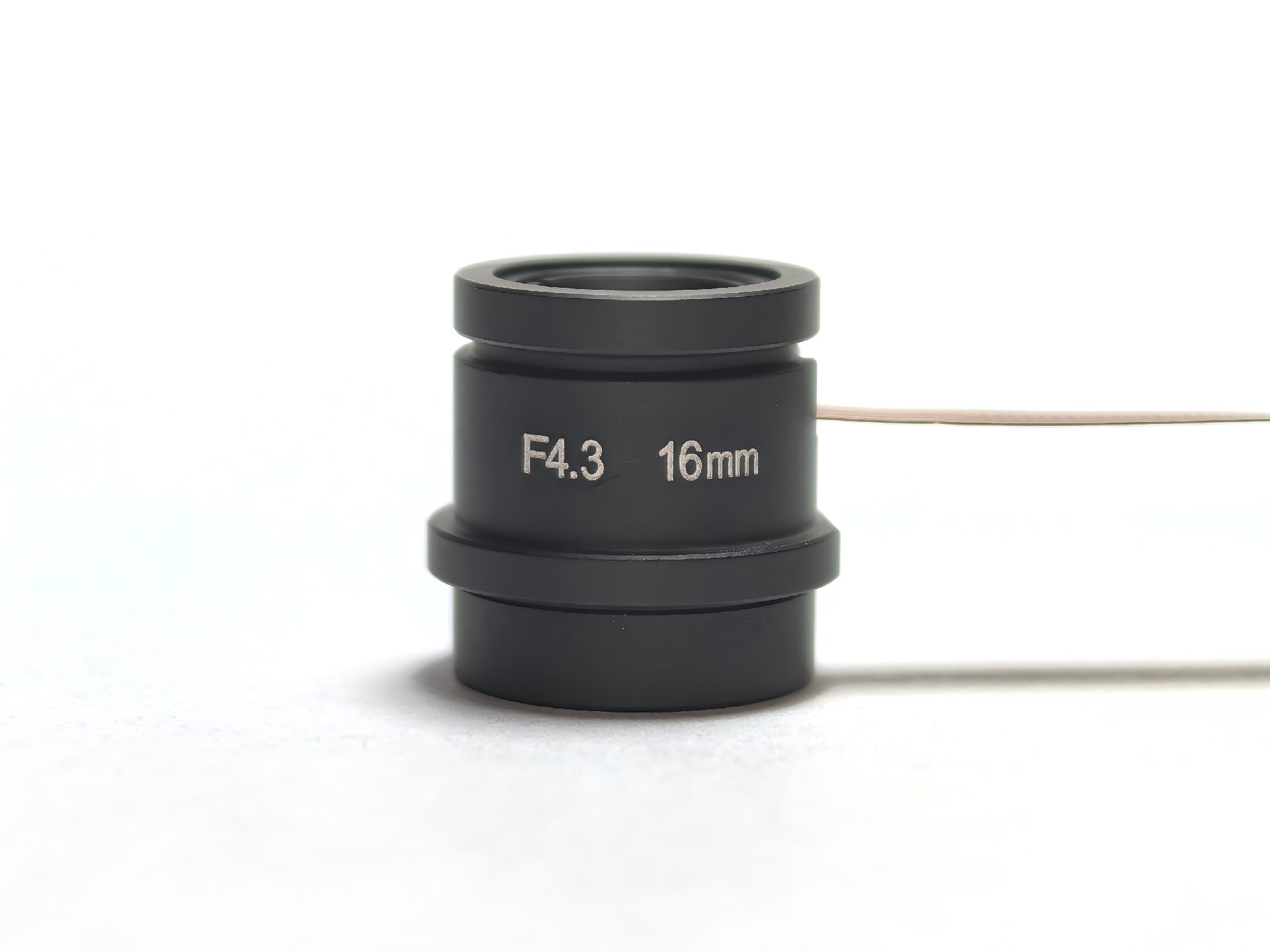

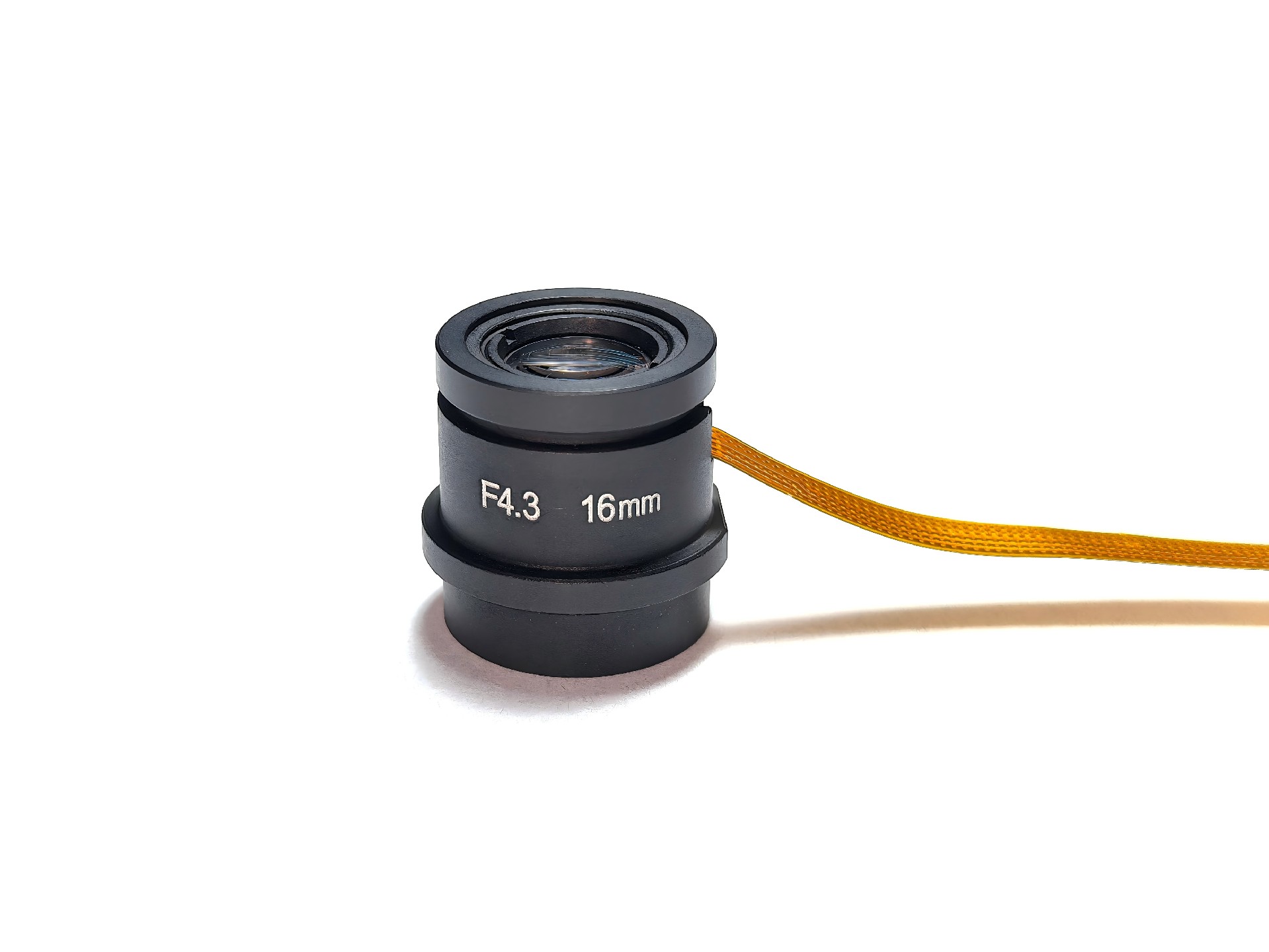

M1643AF liquid lens 16mm 2/3” F4.3

  • Product Display
  • PRODUCT FEATURES
  • Product Specifications
  • Product Display

    Auto-focus lenses are applied to high -speed applications or precision applications that require rapid refocusing .

    Zhongwei products Including autofocus lens with liquid lens/Tlens







    PRODUCT FEATURES

    ▶ Electrostatic drive, rapid response


    ▶ Minimal liquid friction loss, longer life


    ▶ Large adjustment range of focal power


    Supports ultra-short working distance







    Product Specifications

    OVERVIEW



    Series                                 :      Autofocus LensModel Number                       :      M1643AF
    Special Type of Lens   :     Liquid LensLiquid Lens Model                :      Corning
    Focal Length (FL)         :      16mmAperture (F/#)                         :      F4.3
    Sensor Size                     :      2/3''FOV (H*V*D)                             :     27.8°  * 23.4°   *35.8°
    Resolution                      :      6MPWorking Distance Range   :   100mm-1m

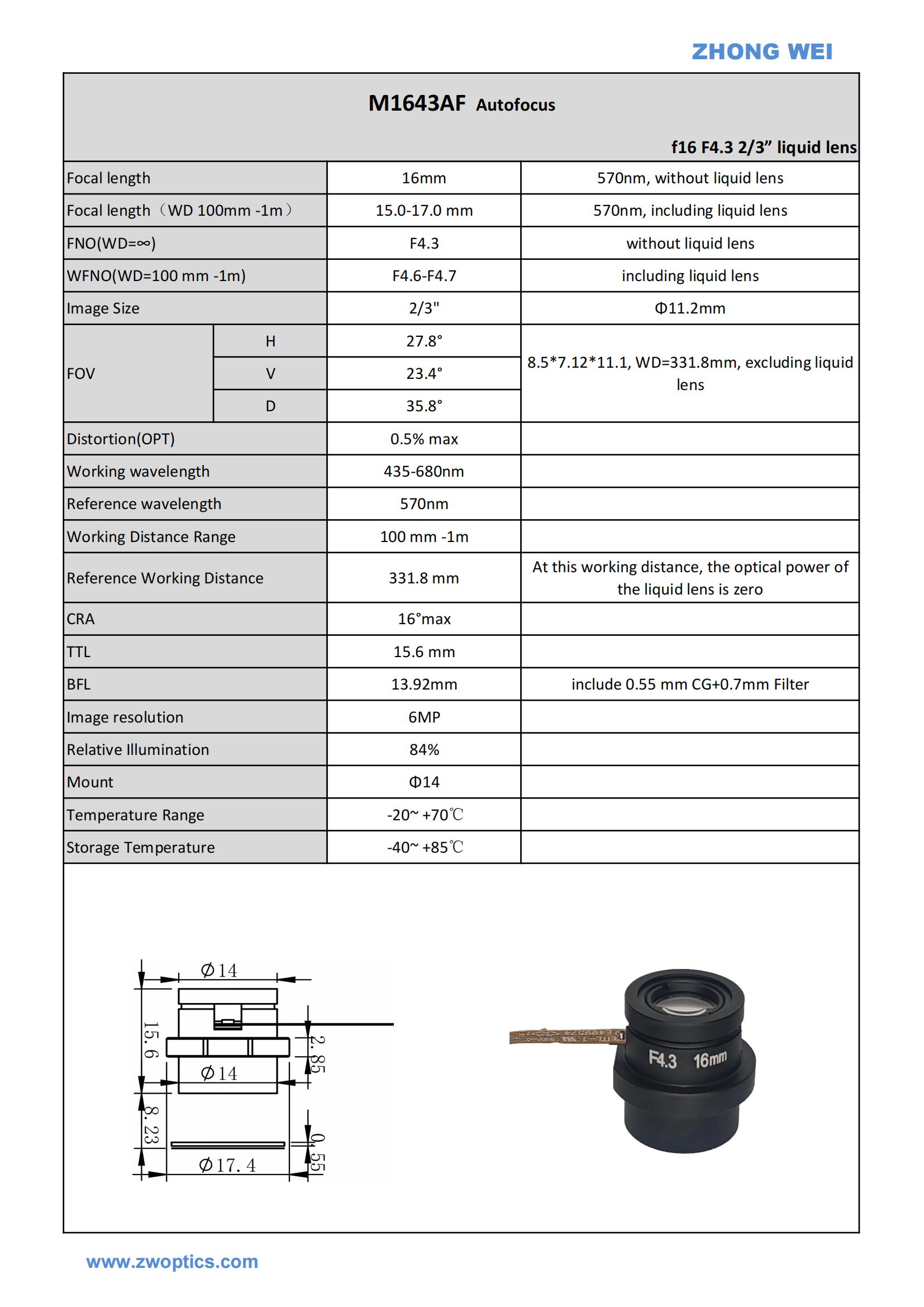

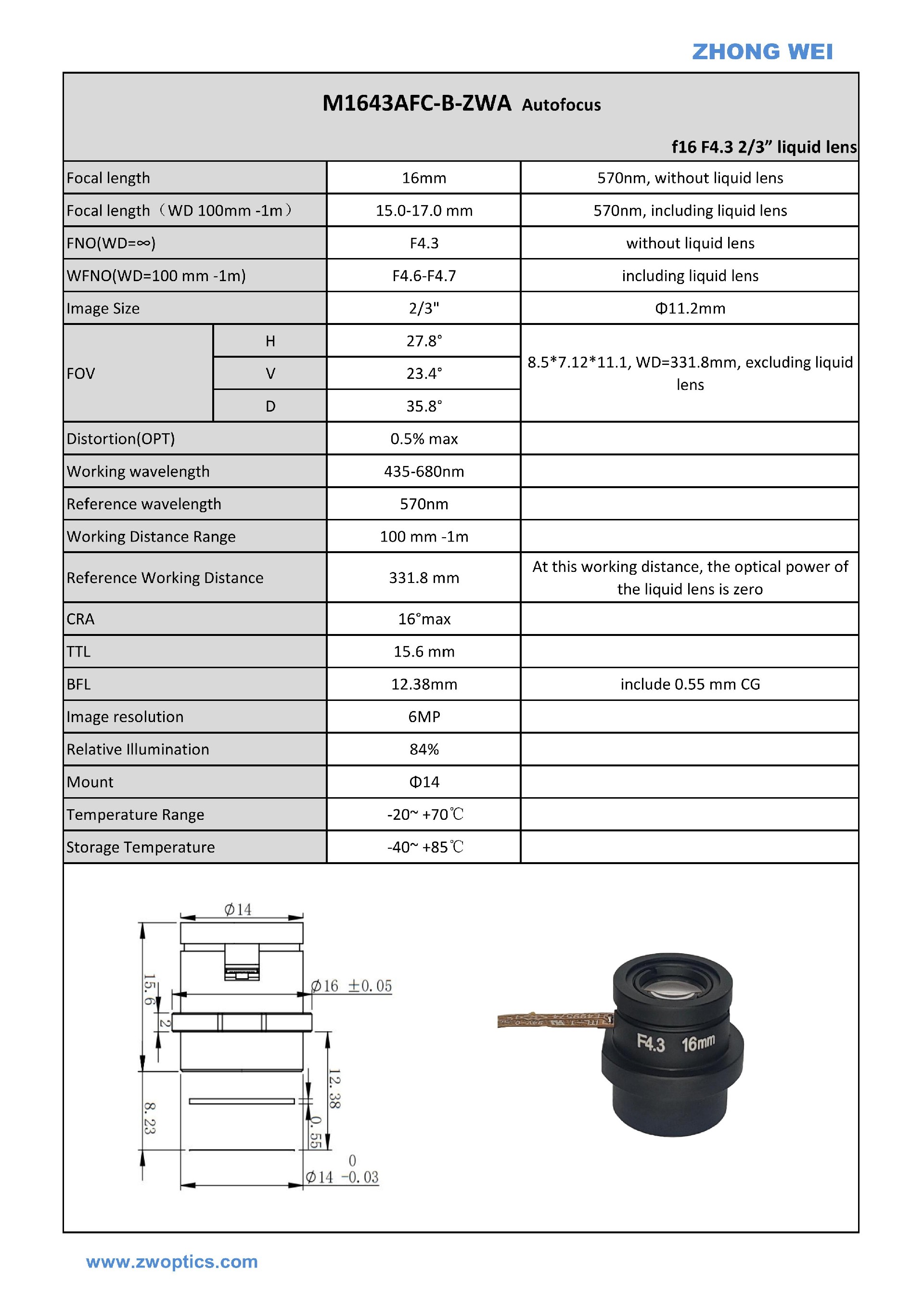

    DATA SHEET





    M1643AF datasheet_00.jpg
