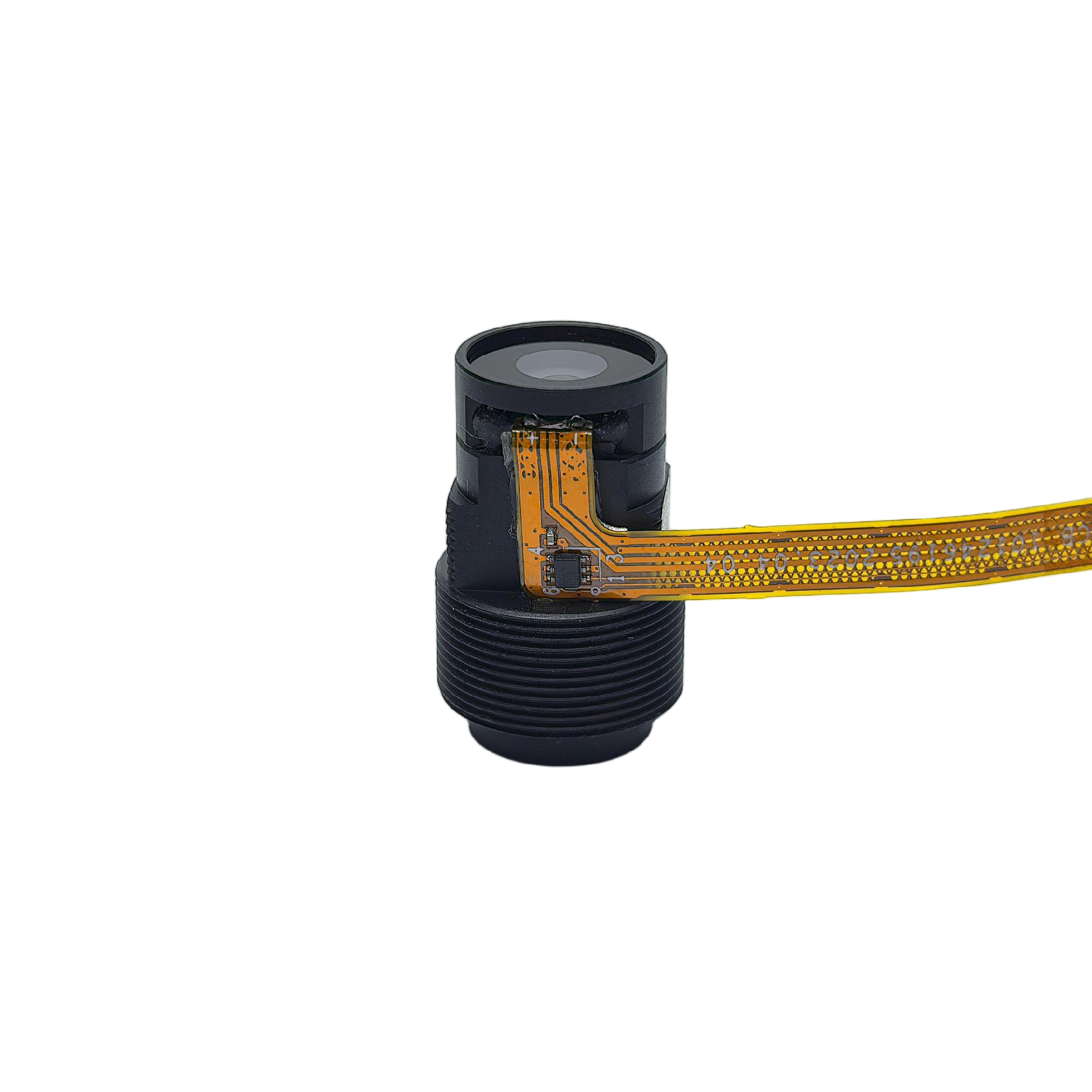

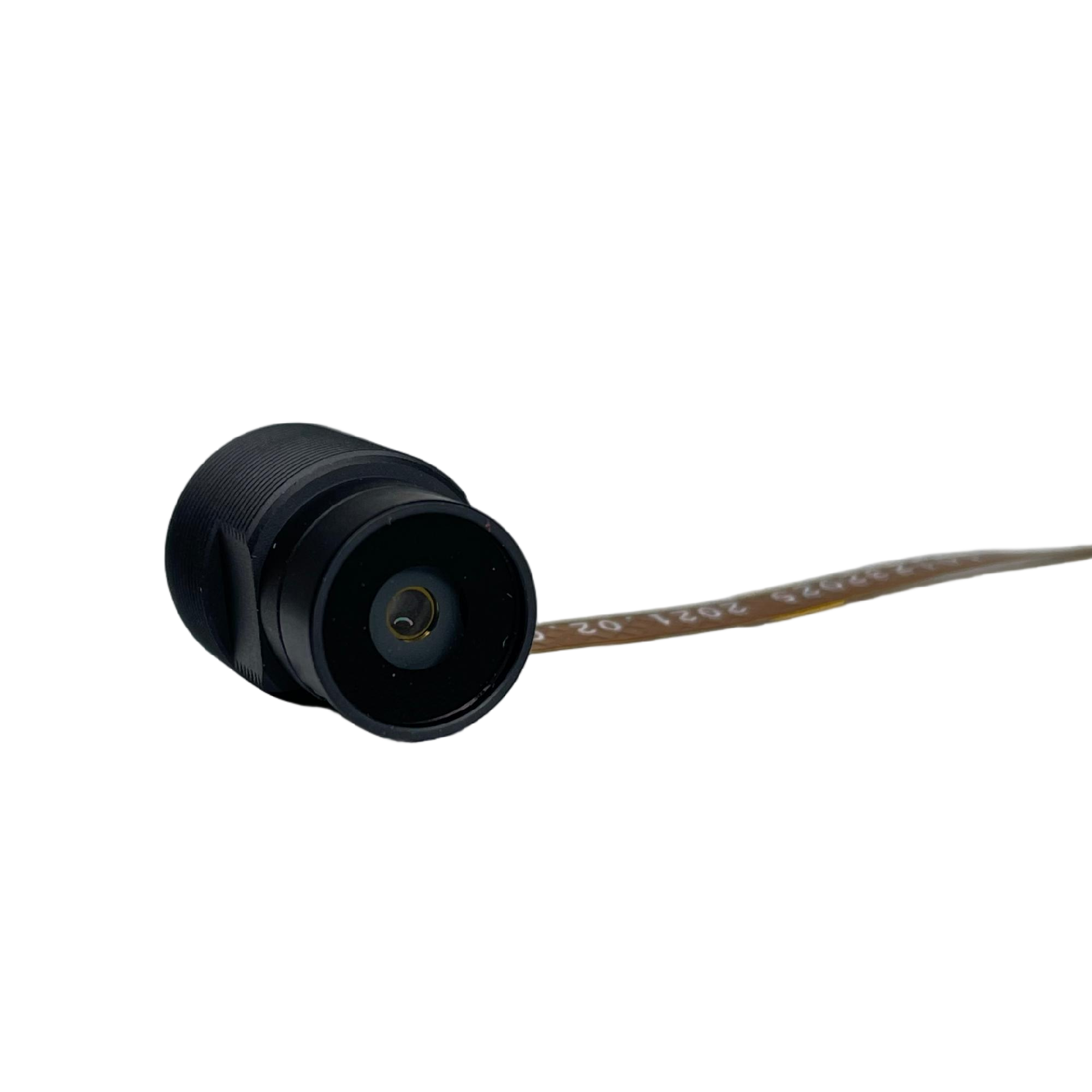

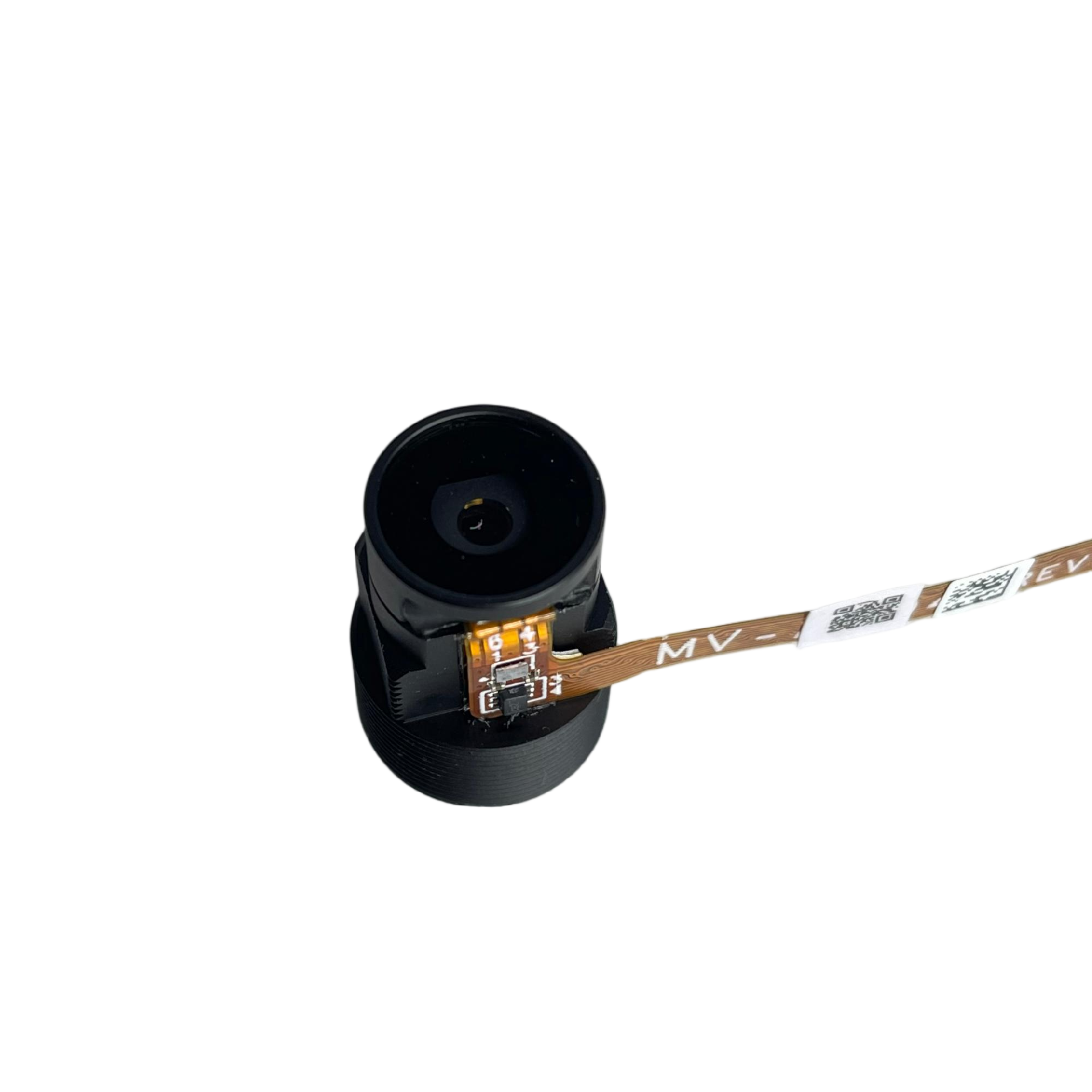

Product Display
Auto-focus lenses are applied to high -speed applications or precision applications that require rapid refocusing .
Zhongwei products Including autofocus lens with liquid lens/Tlens
PRODUCT FEATURES
▶Piezoelectric ceramic drive,enabling more compact size
▶ All solid-state structure is hardly affected by gravity
▶ Lower optical aberrations such as chromatic aberration and astigmatism
▶Maintain excellent optical properties at different object distances
Product Specifications
OVERVIEW
| Series : Autofocus Lens | Model Number : H1685AF |
| Special Type of Lens : Tlens | Tlens Model : Polight |
| Focal Length (FL) : 16mm | Aperture (F/#) : F8.2 |
| Sensor Size : 1/1.8'' | FOV (H*V*D) : 24.5° * 16.5° *29.3° |
| Resolution : 6MP | Working Distance Range ： 100mm-400mm |

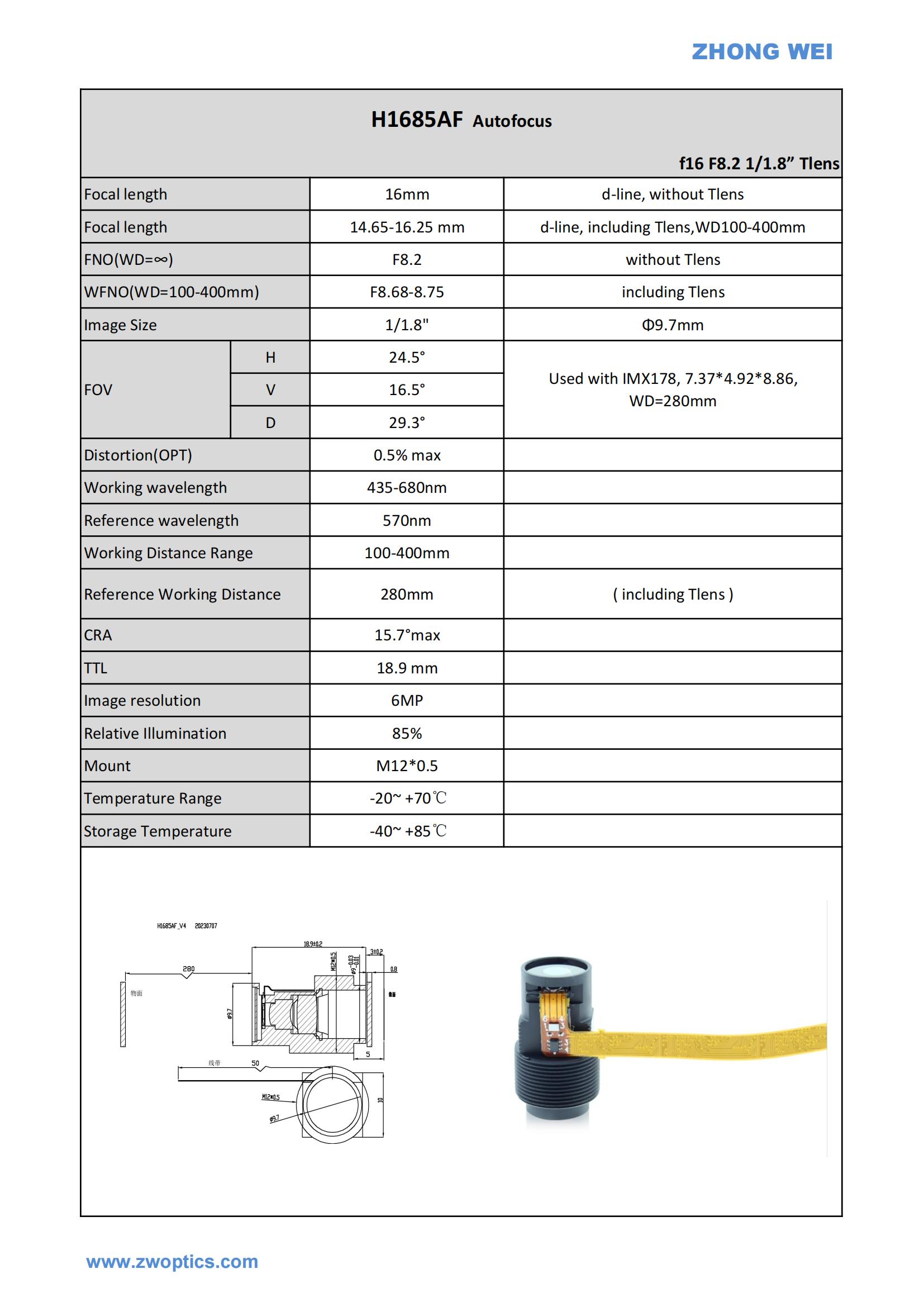

DATA SHEET
