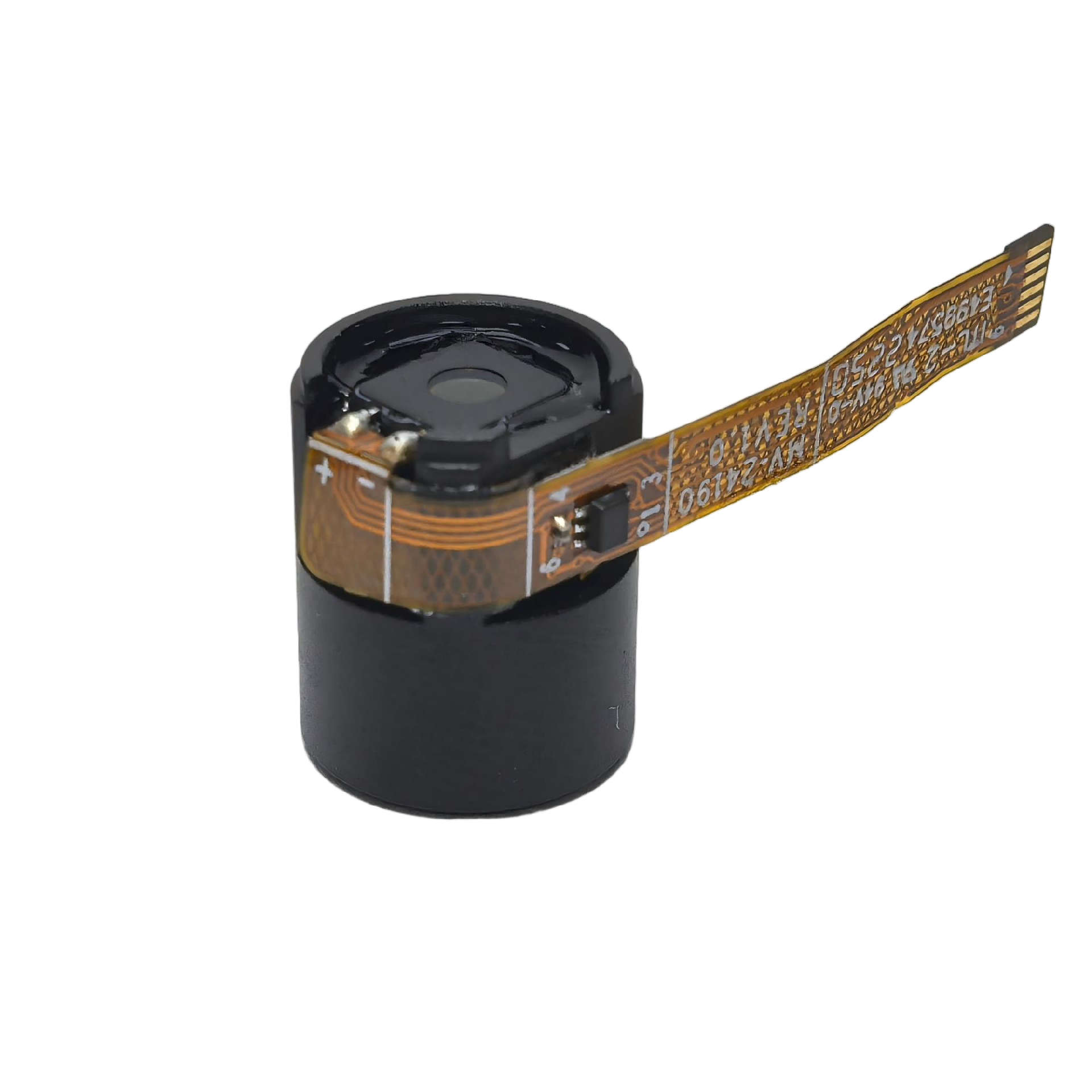

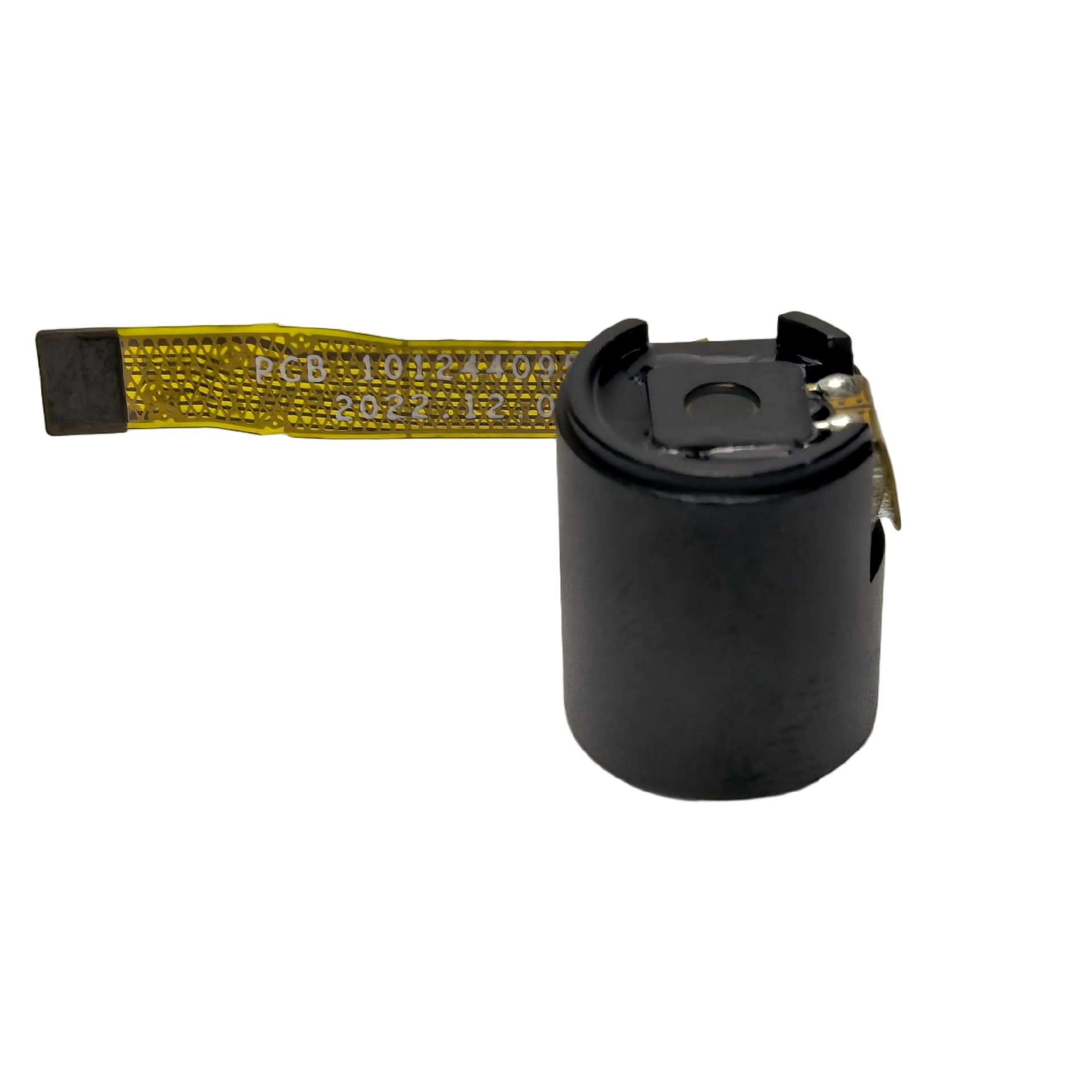

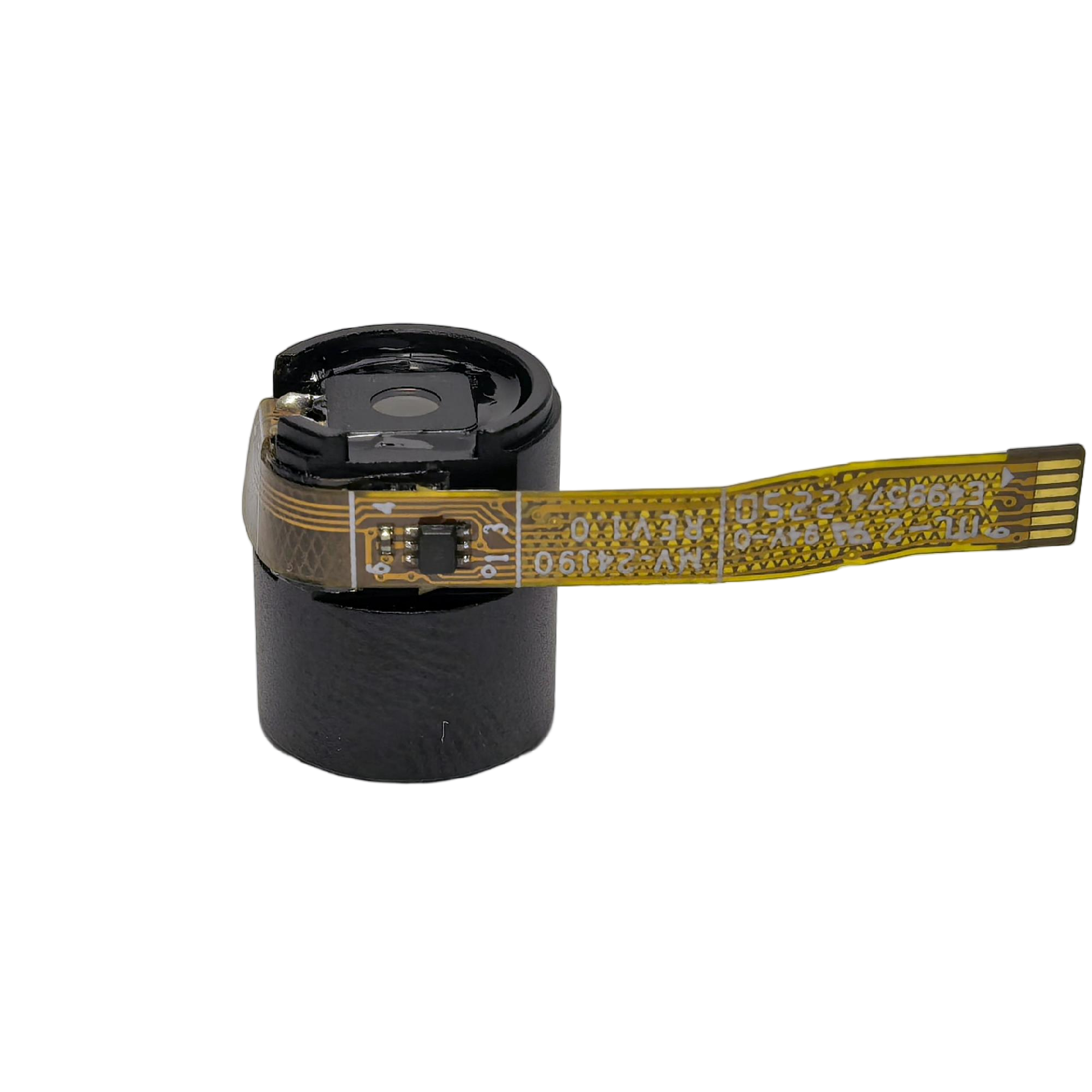

T1050AF Tlens 9.91mm 1/2.7” F4.95-Autofocus lens-Hangzhou Zhongwei Optics Co., Ltd.,

Product Display

PRODUCT FEATURES

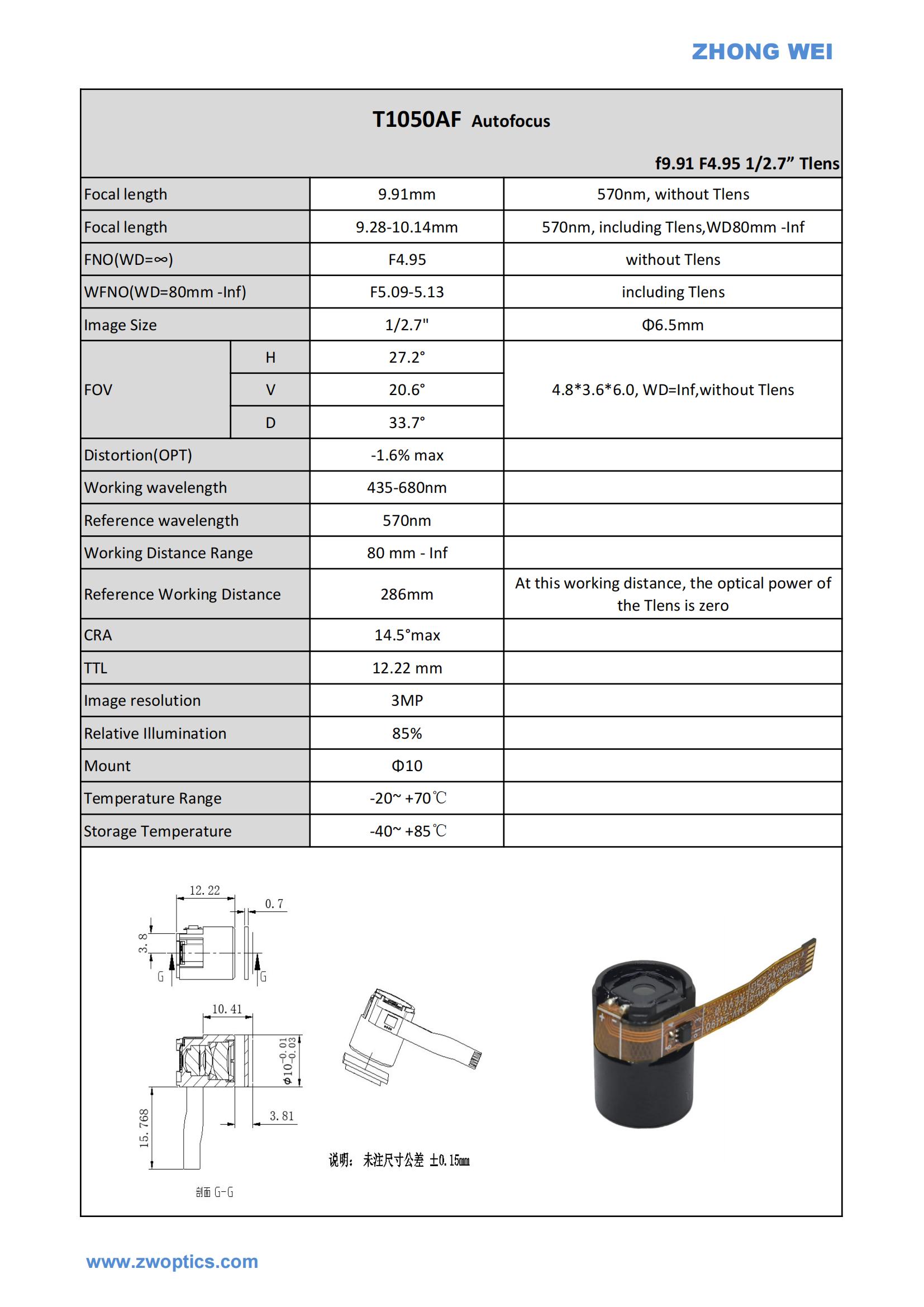

Product Specifications

Auto-focus lenses are applied to high -speed applications or precision applications that require rapid refocusing .

Zhongwei products Including autofocus lens with liquid lens/Tlens

▶Piezoelectric ceramic drive,enabling more compact size

▶ All solid-state structure is hardly affected by gravity

▶ Lower optical aberrations such as chromatic aberration and astigmatism

▶Maintain excellent optical properties at different object distances

OVERVIEW

Series : Autofocus Lens	Model Number : T1050AF
Special Type of Lens : Tlens	Tlens Model : Polight
Focal Length (FL) : 9.91mm	Aperture (F/#) : F4.95
Sensor Size : 1/2.7''	FOV (HVD) : 27.2° * 20.6° *33.7°
Resolution : 3MP	Working Distance Range ： 80mm-Inf
