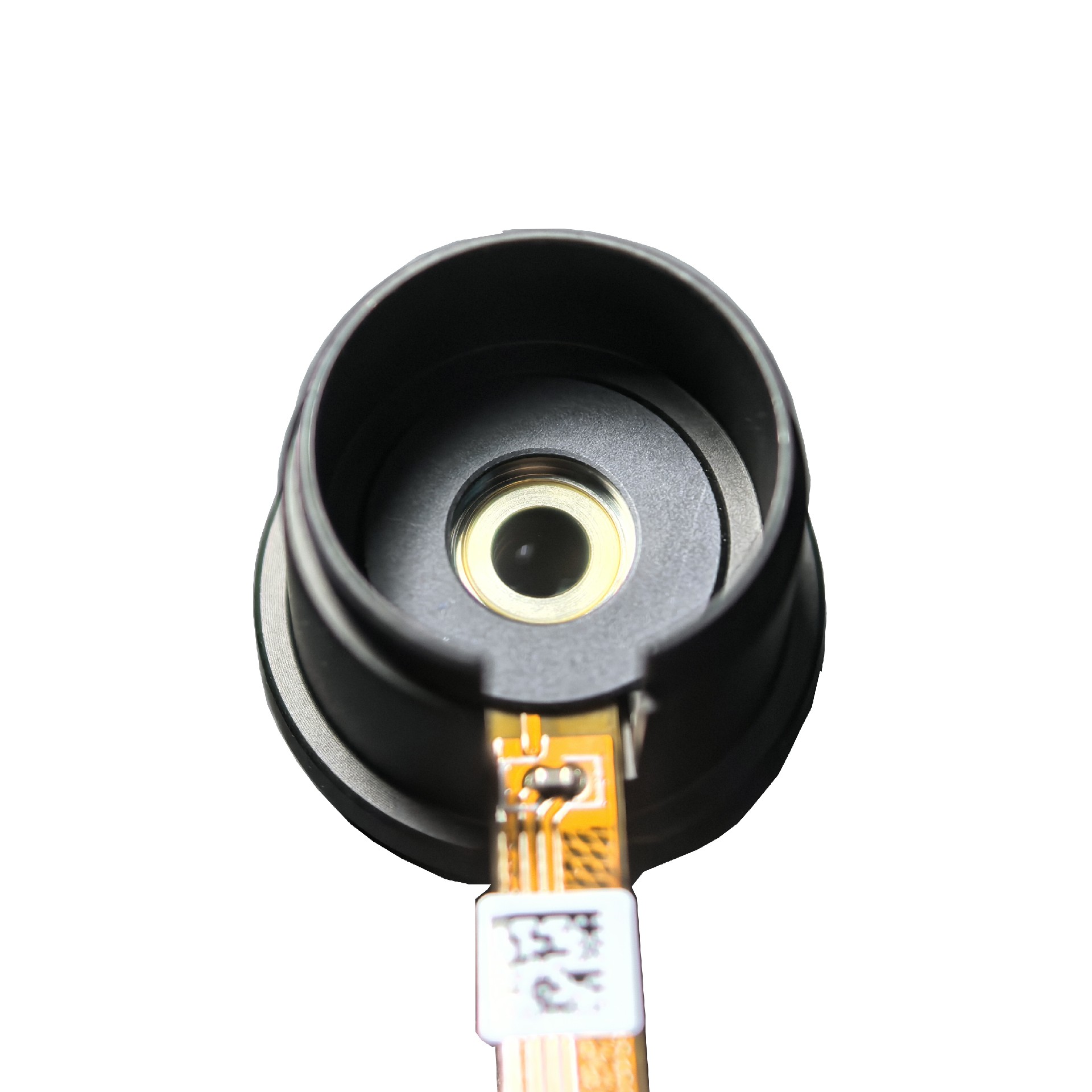

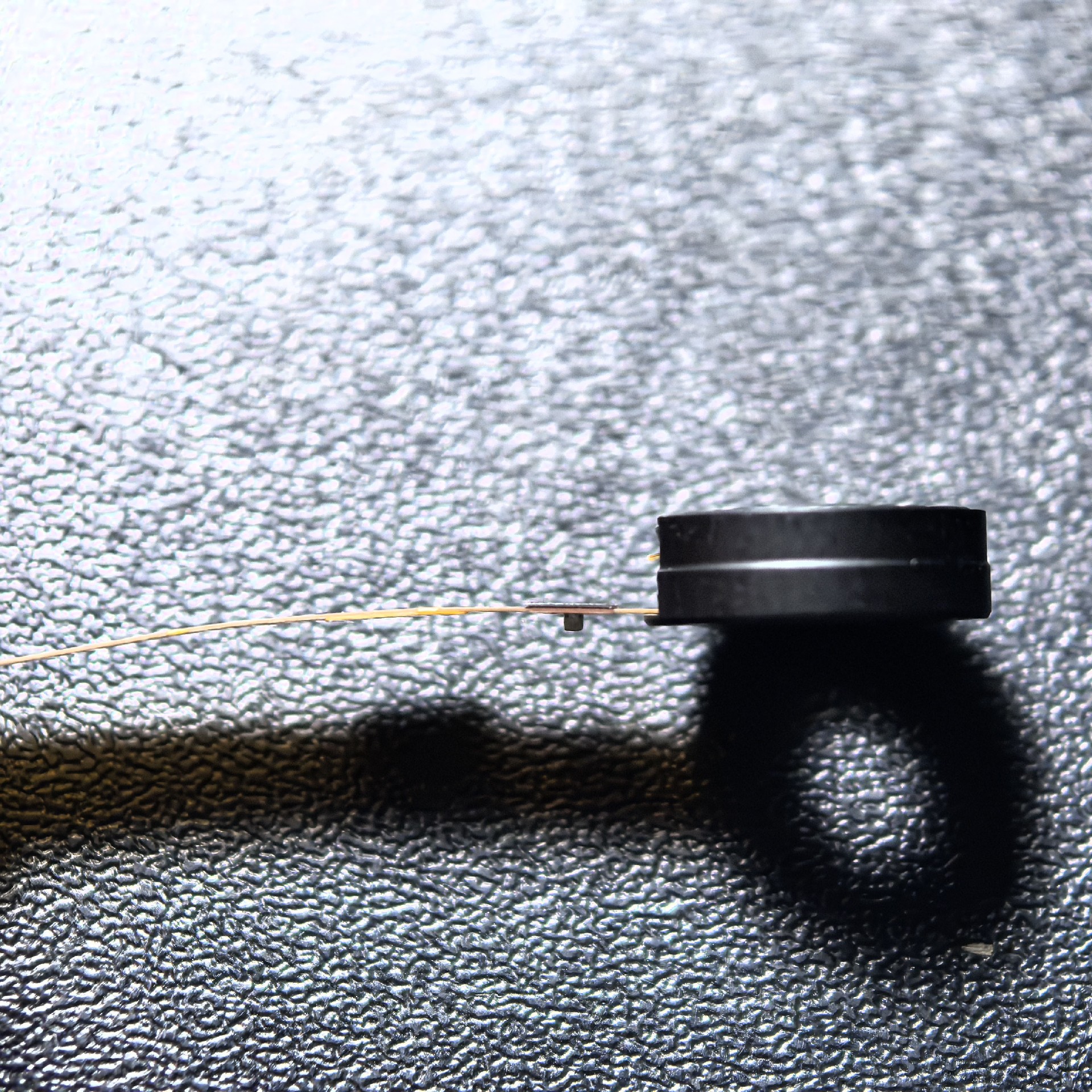

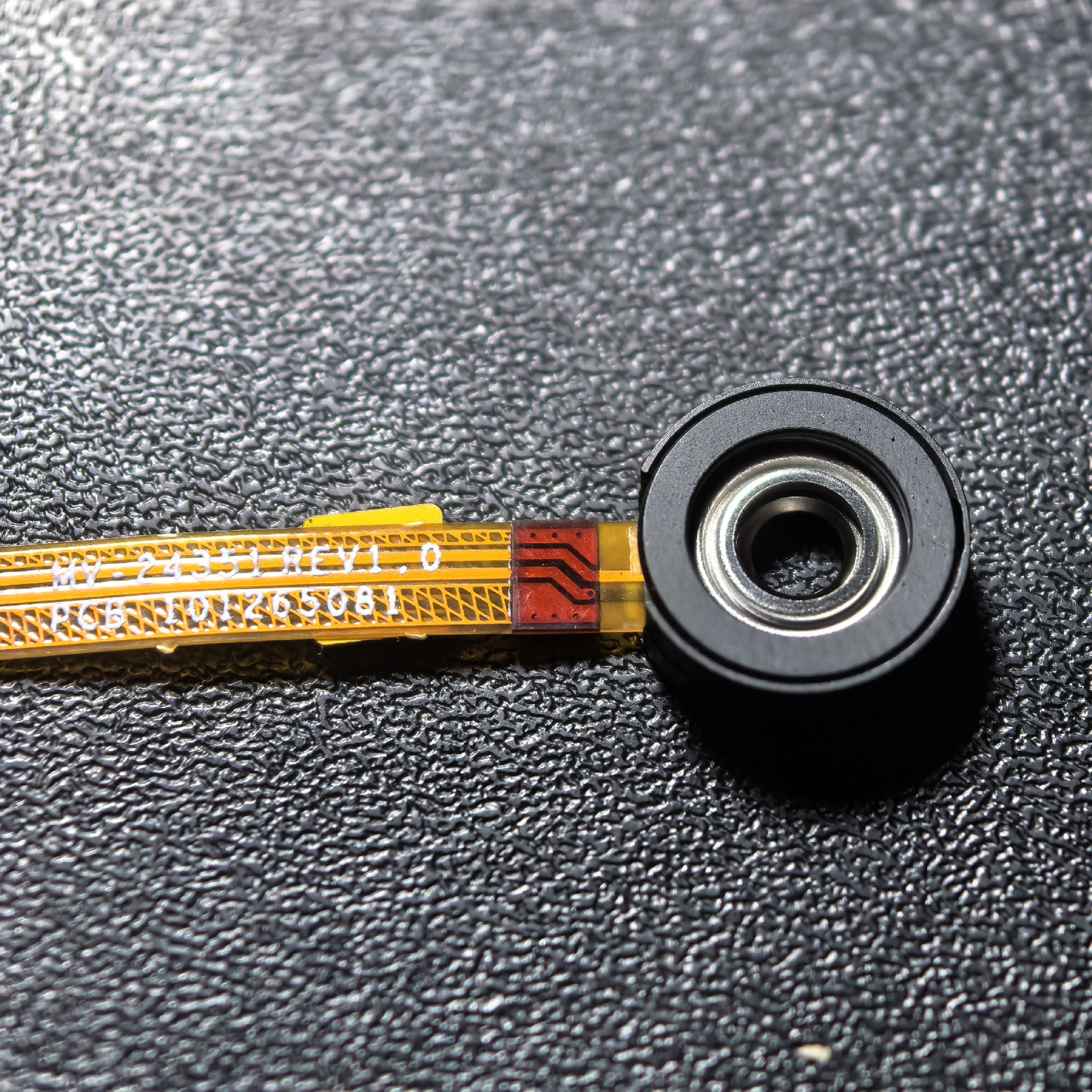

TEDC-A25 Liquid Lens Module with Optical Power -5 to +13 Diopter-Autofocus lens-Hangzhou Zhongwei Optics Co., Ltd.,

Product Display

Auto-focus lenses are applied to high -speed applications or precision applications that require rapid refocusing .

Zhongwei products Including autofocus lens with liquid lens/Tlens

PRODUCT FEATURES

▶Piezoelectric ceramic drive,enabling more compact size

▶ All solid-state structure is hardly affected by gravity

▶ Lower optical aberrations such as chromatic aberration and astigmatism

▶Maintain excellent optical properties at different object distances

Product Specifications

Specifications of Liquid Lens Module TEDC-A25

1.Application Instructions

This module is suitable for Corning A-25H0-SO type liquid lens.

2.Optoelectronic Performance

Parameter	Unit	Symbol	Min	Typ	Max
Aperture size	mm	Ø	2.5
Low optical power	m^-1	P_L	-5
Voltage for P_L	V	V_L		34
High optical power	m^-1	P_H	+13
Voltage for P_H	V	V_H		54	60
Optical power @0V	m^-1	P₀		-12
Wave front error, rms	nm	WFErms		30	65
Voltage @0 diopter	V	V_0D	36	39.5	48
Hysteresis	m^-1	H		0.3	1.5
Slope	(m.V)^-1	S	0.7	0.85	1.0
Integral linearity	m^-1	L		0.2
Differential linearity	(m.V)^-1	δ		0.1
Optical axis stability	mrad			0.2
Transmission @587nm	%	T₅₈₇	94	97
Repeatability	m^-1			0.075	0.2
Stability	m^-1			0.075	0
Response time @85℃	ms			5
Response time @60℃	ms			10
Response time @25℃	ms			40
Response time @0℃	ms			100

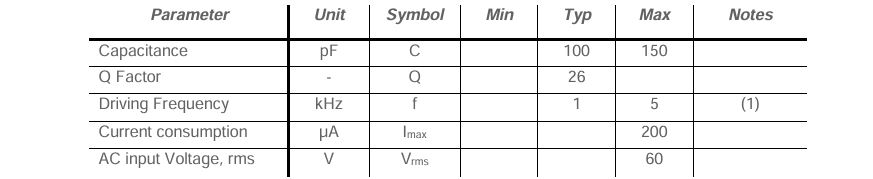

3.Electrical Specifications

Remarks:

(1) All parameters in the data sheet are specified for a 1kHz sine wave edge.During the test phase, a square wave signal can be applied using a function signal generator, provided that the signal contains no DC voltage. The use of DC voltage or a combination of DC/AC voltage will cause abnormal behavior of the tunable lens and shorten its service life.

Important Note:

The liquid zoom lens is sensitive to Electrostatic Discharge (ESD). Exercise caution against static electricity during operation.

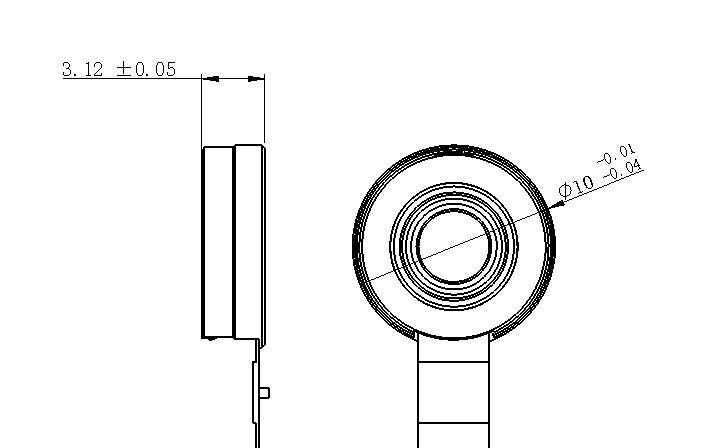

4.Mechanical Dimensions
