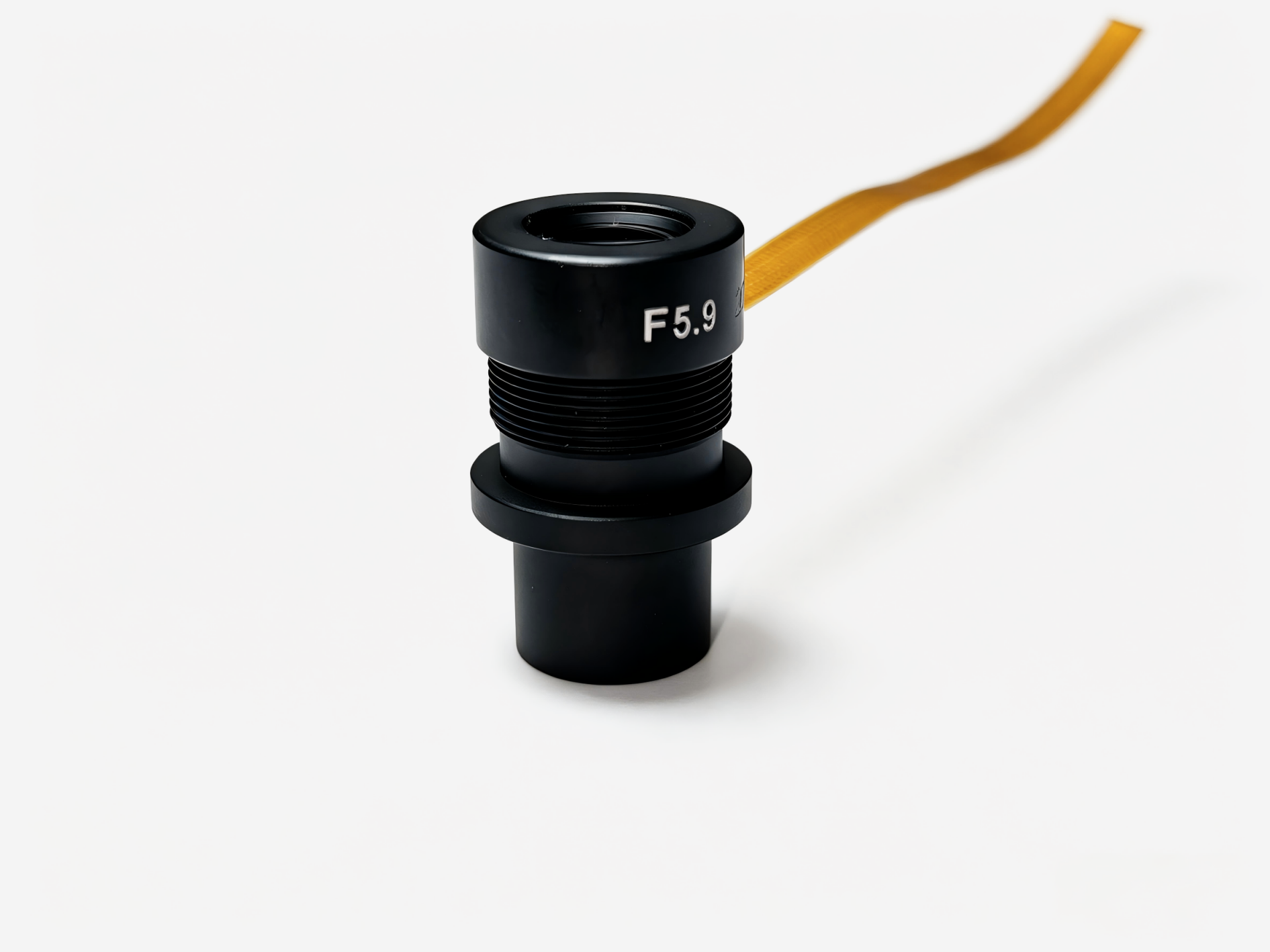

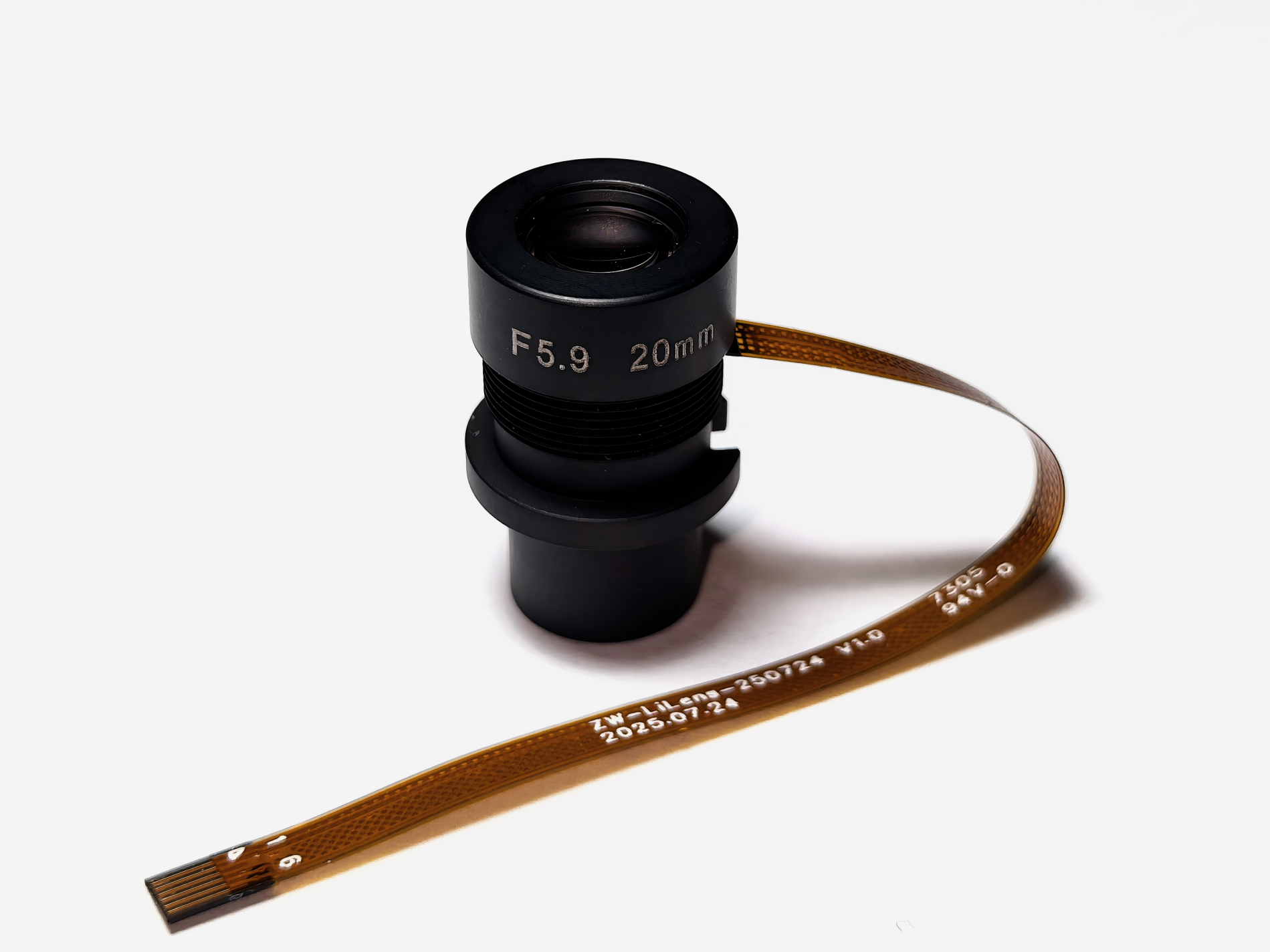

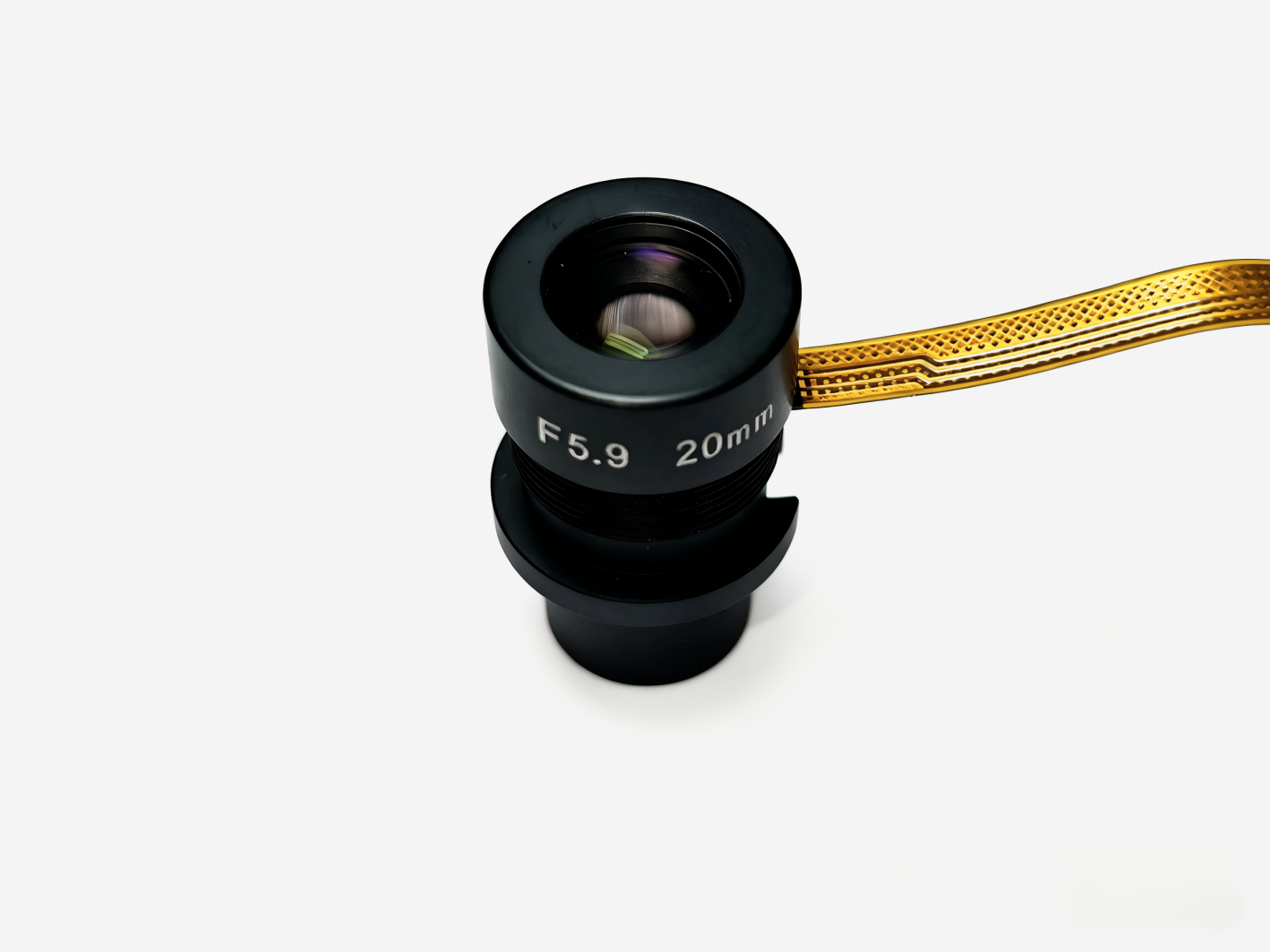

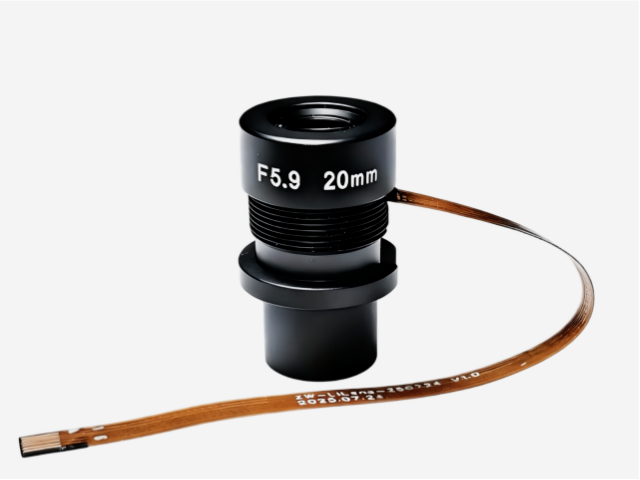

H2059AFC Autofocus liquid lens 20mm 1/1.8” F5.9-Autofocus lens-Zhongwei Optics

Product Display

PRODUCT FEATURES

Product Specifications

Auto-focusing lens are applied to high -speed applications or precision applications that require rapid refocusing .

Zhongwei products Including autofocus lens with liquid lens/Tlens

▶Corning liquid lens

▶ Electrostatic drive, milliseond response

▶ Minimal liquid friction loss, longer life

▶ Large adjustment range of focal power

▶Supports ultra-short working distance

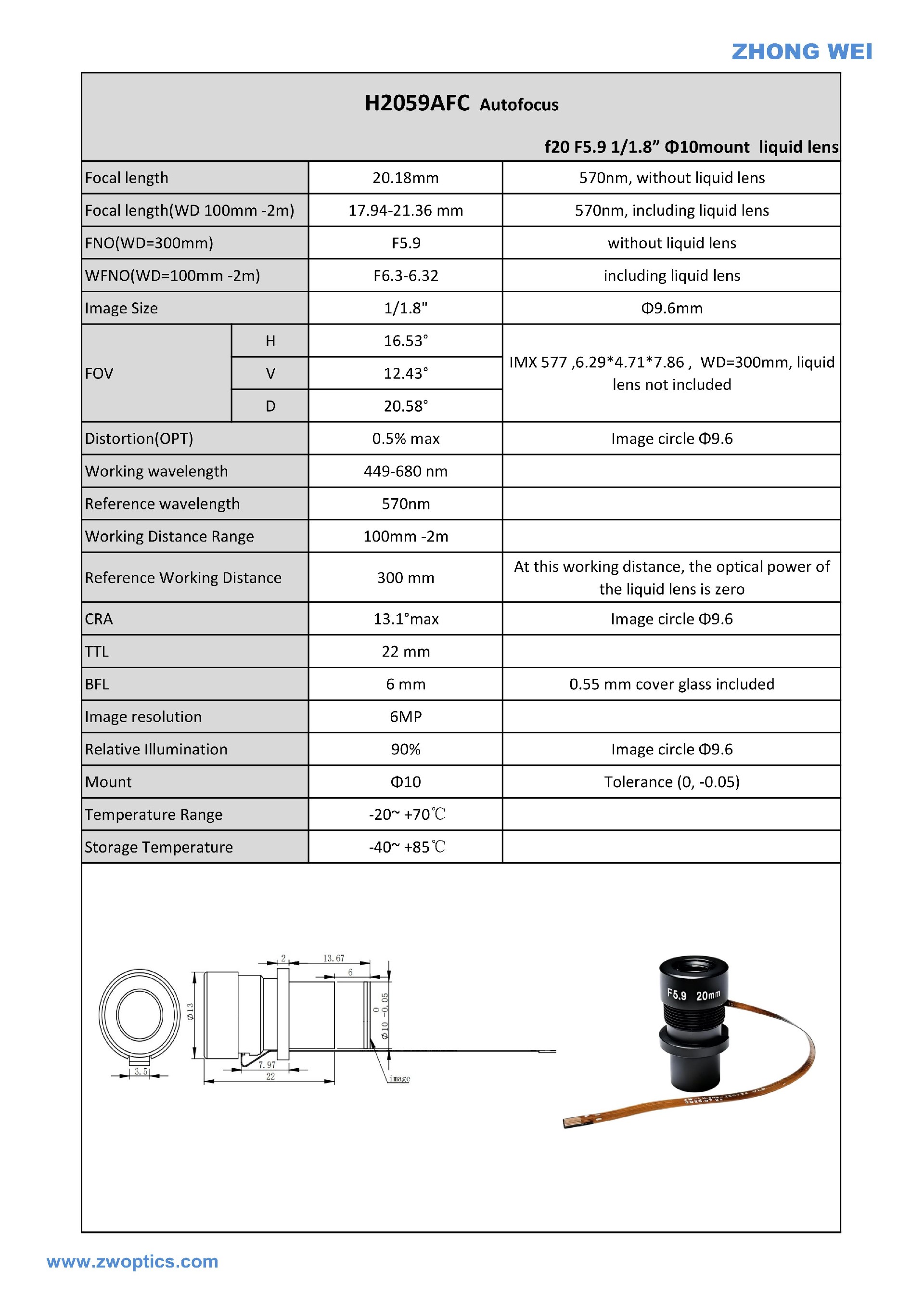

OVERVIEW

Series : Autofocus Lens	Model Number : H2059AFC
Special Type of Lens : Liquid Lens	Liquid Lens Model : Corning
Focal Length (FL) : 20mm	Aperture (F/#) : F5.9
Sensor Size : 1/1.8''	FOV (HVD) : 16.53° * 12.43° *20.58°
Resolution : 6MP	Working Distance Range ： 100mm-2m
